Content

Asus TUF Gaming Radeon RX 6950 XT
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > AMD RX 6950 XT > Asus TUF Gaming Radeon RX 6950 XT

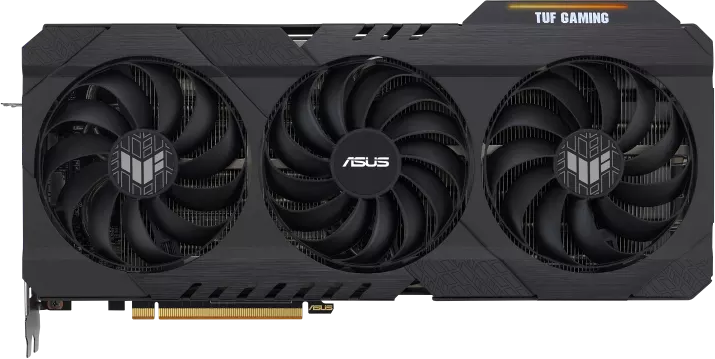

Asus TUF Gaming Radeon RX 6950 XT - Front
Asus TUF Gaming Radeon RX 6950 XT - Front
Asus TUF Gaming Radeon RX 6950 XT
TUF-RX6950XT-O16G-GAMING
Available at TechAmerica from $1310.00. Buy now!
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores5120
TMUs320
ROPs128
RT Cores80
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth1,152.0 GB/s
Speed36.0 Gbps
Clocks
Base clock1860 MHz
Game Clock2116 MHz 2100 MHz
Boost Clock2324 MHz 2310 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP335 w
Recommended PSU1000 w 700 w
Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Dimensions
Slots2.9 3
Length320 mm
Height140.2 mm
Width57.8 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
ASRock Radeon RX 6950 XT Phantom Gaming 16GB OC
RX6950XT PG 16GO
2324 MHz +0.6%2.8330 mm140 mm56 mm
Asus TUF Gaming Radeon RX 6950 XT
TUF-RX6950XT-O16G-GAMING
2324 MHz +0.6%2.9320 mm140.2 mm57.8 mm
