Name: EVGA GeForce GTX 1080 Classified
Brand: EVGA
SKU: 08G-P4-6386-KR

EVGA GeForce GTX 1080 Classified

Specs, info and data

The GPU Database

Featuring 310+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1080 > EVGA GeForce GTX 1080 Classified

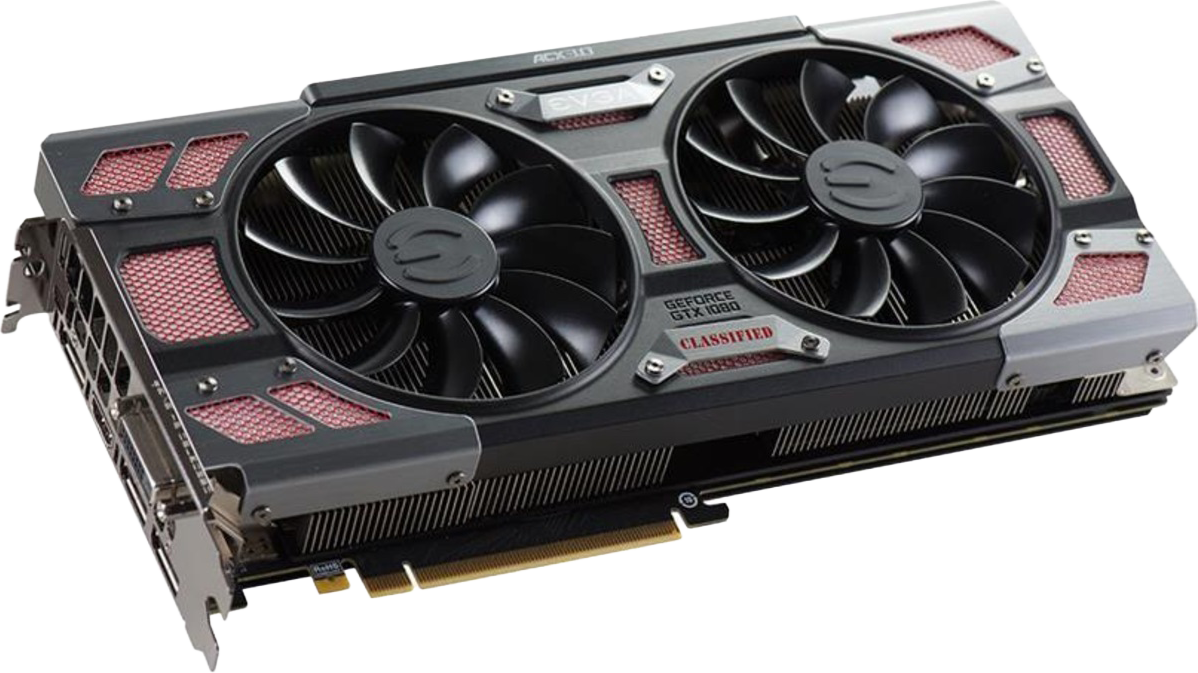

EVGA GeForce GTX 1080 Classified - Front

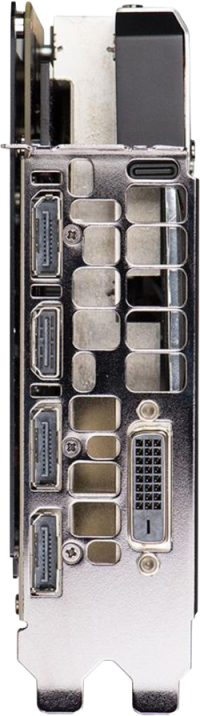

EVGA GeForce GTX 1080 Classified - Outputs

EVGA GeForce GTX 1080 Classified
08G-P4-6386-KR
GPUs.net

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs64
Memory
TechnologyGDDR5X
Size8 GB
Bus256 bit
Bandwidth320.3 GB/s
Speed10.0 Gbps

Clocks
Base clock1721 MHz 1607 MHz
Boost Clock1860 MHz 1733 MHz
Memory Clock1251 MHz
Power
8-pin2
TDP180 w
Recommended PSU500 w 450 w
Display
DisplayPort3 1.4a
HDMI1 2.0
DVI1
Dimensions
Slots2
Length279 mm 267 mm
Height112 mm
Width40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY GTX 1080 XLR8	1733 MHz
EVGA GTX 1080 Founders Edition 900-1G413-0000-000	1733 MHz	2	267 mm	112 mm	40 mm
MSI GeForce GTX 1080 30th Anniversary	1860 MHz +7.3%	2.7	277 mm	167 mm	54 mm
MSI GeForce GTX 1080 AERO OC	1771 MHz +2.2%	2	269 mm	111 mm	35 mm
EVGA GeForce GTX 1080 Classified 08G-P4-6386-KR	1860 MHz +7.3%	2	279 mm
