Name: MSI GeForce GTX 1080 AERO OC
Brand: MSI

MSI GeForce GTX 1080 AERO OC

Specs, info and data

The GPU Database

Featuring 290+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1080 > MSI GeForce GTX 1080 AERO OC

MSI GeForce GTX 1080 AERO OC
GPUs.net

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs64
Memory
TechnologyGDDR5X
Size8 GB
Bus256 bit
Bandwidth320.3 GB/s
Speed10.0 Gbps

Clocks
Base clock1607 MHz
Boost Clock1771 MHz 1733 MHz
Memory Clock1251 MHz
Power
8-pin1
TDP180 w
Recommended PSU500 w 450 w

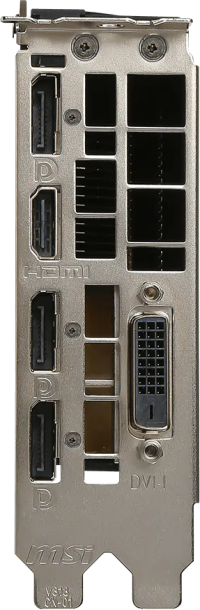

Display
DisplayPort3 1
DVI-D DL1
Dimensions
Slots2
Length269 mm 267 mm
Height111 mm 112 mm
Width35 mm 40 mm
Weight840 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY GTX 1080 XLR8	1733 MHz
EVGA GTX 1080 Founders Edition 900-1G413-0000-000	1733 MHz	2	267 mm	112 mm	40 mm
MSI GeForce GTX 1080 30th Anniversary	1860 MHz +7.3%	2.7	277 mm	167 mm	54 mm
MSI GeForce GTX 1080 AERO OC	1771 MHz +2.2%	2	269 mm	111 mm	35 mm
