| Information | |
|---|---|
| Platform | Consumer |
| Architecture | Maxwell 2.0 |
| Generation | GeForce 900 |
| Previous Gen | GeForce 700 |
| Next Gen | GeForce 10 |
| Interface | PCIe 3.0 x16 |
| Core | |
|---|---|
| Name | GM200 |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 8000 million |
| Die Size | 601 mm² |
| Density | 13.3 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 2816 |
| TMUs | 176 |
| ROPs | 96 |
| Memory | |
|---|---|
| Technology | GDDR5 |
| Size | 6 GB |
| Bus | 384 bit |
| Bandwidth | 336.576 GB/s |
| Speed | 7.012 Gbps |
| Clocks | |
|---|---|
| Base clock | 1000 MHz |
| Boost Clock | 1076 MHz |
| Memory Clock | 1753 MHz |
| Power | |
|---|---|
| 8-pin | 2 |
| TDP | 250 w |
| Recommended PSU | 600 w |

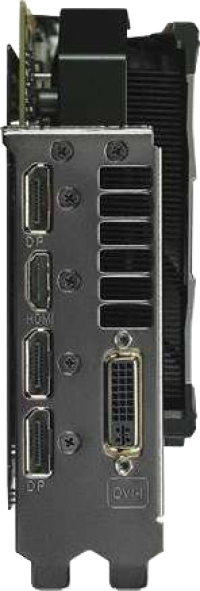

| Display | |
|---|---|
| DisplayPort | 3 |
| HDMI | 1 |
| DVI | 1 |
| Dimensions | |
|---|---|
| Slots | 2 |
| GPU▲ | Boost Clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 1367 MHz +27.0% | mm | mm | mm | ||
| 1076 MHz | mm | mm | mm |
