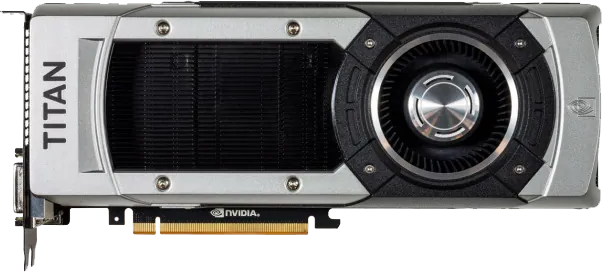

NVIDIA GTX TITAN Black

The GTX TITAN Black is a consumer-grade GPU from nvidia's GeForce 700 series, built on the  architecture using the GK110B chip. Equipped with 6 GB of GDDR5 memory on a 384-bit bus, it delivers 336.0 GB/s of bandwidth at 7.0 Gbps.

Launched on 17 Feb, 2014, the GTX TITAN Black carried a starting price of $999.

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK110B
FoundryTSMC
Process Node28 nm
Transistors7080 million
Die Size561 mm²
Density12.6 /mm²
GPU Core Config
Cores2880
TMUs240
ROPs48
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth336 GB/s
Speed7 Gbps

Information
Platform	Consumer
Architecture	Kepler
Generation	GeForce 700
Previous Gen	GeForce 600
Next Gen	GeForce 900
Interface	PCIe 3.0 x16

Core
Name	GK110B
Foundry	TSMC
Process Node	28 nm
Transistors	7080 million
Die Size	561 mm²
Density	12.6 /mm²

GPU Core Config
Cores	2880
TMUs	240
ROPs	48

Memory
Technology	GDDR5
Size	6 GB
Bus	384 bit
Bandwidth	336 GB/s
Speed	7 Gbps

Clocks
Base clock889 MHz
Boost Clock980 MHz
Memory Clock1750 MHz
Power
TDP250 w
Recommended PSU600 w
Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots2

Clocks
Base clock	889 MHz
Boost Clock	980 MHz
Memory Clock	1750 MHz

Power
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	1
HDMI	1
DVI	2

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA GTX TITAN Black	980 MHz		mm	mm	mm
