Asus EKWB GeForce RTX 3090
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 3090 > Asus EKWB GeForce RTX 3090

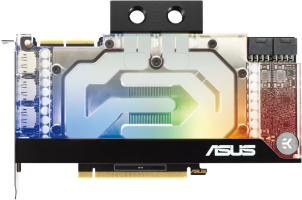

Asus EKWB GeForce RTX 3090 - Front

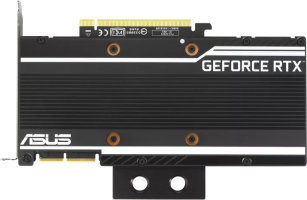

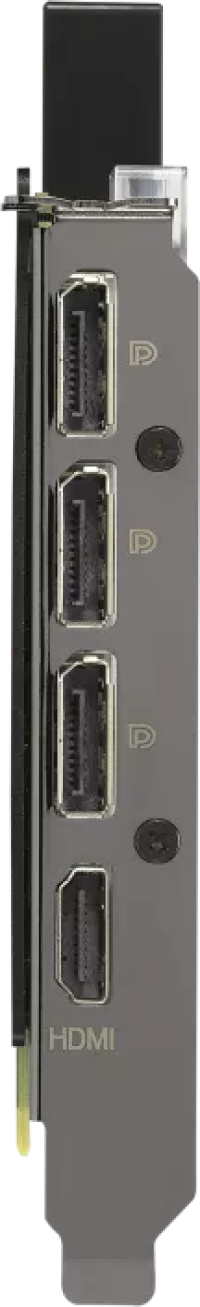

Asus EKWB GeForce RTX 3090 - Front Asus EKWB GeForce RTX 3090 - Rear Asus EKWB GeForce RTX 3090 - Side Asus EKWB GeForce RTX 3090 - Outputs
Asus EKWB GeForce RTX 3090
RTX3090-24G-EK
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA102
FoundrySamsung
Process Node8 nm
Transistors28300 million
Die Size628.0 mm²
Density45.1 /mm²
GPU Core Config
Cores10496
TMUs328
ROPs112
Tensor Cores328
RT Cores82
Memory
TechnologyGDDR6X
Size24 GB
Bus384 bit
Bandwidth936.2 GB/s
Speed19.5 Gbps
Clocks
Base clock1395 MHz
Boost Clock1725 MHz 1695 MHz
Memory Clock1219 MHz
Power
8-pin2
TDP350 w
Recommended PSU750 w
Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Resolution7680x4320
Monitors4
Dimensions
Slots1 3
Length216 mm 313 mm
Height136.2 mm 138 mm
Width19.8 mm 55 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus ROG Strix GeForce RTX 3090
ROG-STRIX-RTX3090-24G-GAMING-MODEL
1725 MHz +1.8%2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3090 OC EVA Edition
ROG-STRIX-RTX3090-O24G-EVA-MODEL
1890 MHz +11.5%2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3090 GUNDAM EDITION
ROG-STRIX-GEFORCE-RTX-3090-GUNDAM-EDITION-MODEL
1890 MHz +11.5%2.9318.5 mm140.1 mm57.8 mm
Asus EKWB GeForce RTX 3090
RTX3090-24G-EK
1725 MHz +1.8%1216 mm136.2 mm19.8 mm
Asus ROG Strix GeForce RTX 3090 OC Edition
ROG-STRIX-RTX3090-O24G-GAMING-MODEL
1890 MHz +11.5%2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3090 White Edition
ROG-STRIX-RTX3090-24G-WHITE-MODEL
1725 MHz +1.8%2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3090 White OC Edition
ROG-STRIX-RTX3090-O24G-WHITE-MODEL
1890 MHz +11.5%2.9318.5 mm140.1 mm57.8 mm
NVIDIA RTX 3090 Founders Edition
1695 MHz3313 mm138 mm55 mm
Asus TUF Gaming GeForce RTX 3090
TUF-RTX3090-24G-GAMING
1725 MHz +1.8%2.6299.9 mm126.9 mm51.7 mm
Asus TUF Gaming GeForce RTX 3090 OC Edition
TUF-RTX3090-O24G-GAMING
1770 MHz +4.4%2.6299.9 mm126.9 mm51.7 mm
EVGA GeForce RTX 3090 FTW3 ULTRA
24G-P5-3987-KR
1800 MHz +6.2%2.8300 mm136.8 mm
