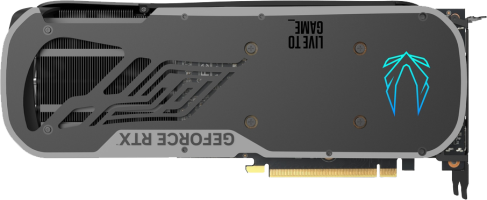

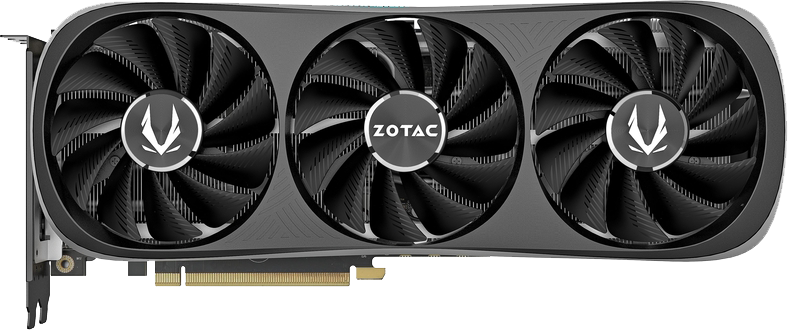

Zotac GeForce RTX 4070 Trinity
Zotac GeForce RTX 4070 Trinity
ZT-D40700D-10P
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
Max temperature90 C
Core
NameAD104
FoundryTSMC
Process Node5 nm
Transistors35800 million
Die Size294 mm²
Density121.8 /mm²
GPU Core Config
Cores5888
TMUs184
ROPs64
SMs46
Tensor Cores184
RT Cores46
Memory
TechnologyGDDR6X
Size12 GB
Bus192 bit
Bandwidth504.192 GB/s
Speed21.008 Gbps
Clocks
Base clock1920 MHz
Boost Clock2475 MHz
Memory Clock1313 MHz
Power
12vhpwr1
TDP200 w
Recommended PSU600 w 650 w

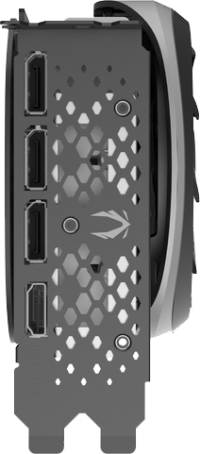

Display
DisplayPort3
HDMI1
Monitors4

Bios files
95.04.3E.40.C8
N/A
Size: 2000 KB
Build: 2022-12-27

Models
GPUBoost ClockSlotsLengthHeightWidth
2475 MHz mm mm mm
