Asus Dual GeForce RTX 4070 SUPER EVO
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 4070 Super > Asus Dual GeForce RTX 4070 SUPER EVO

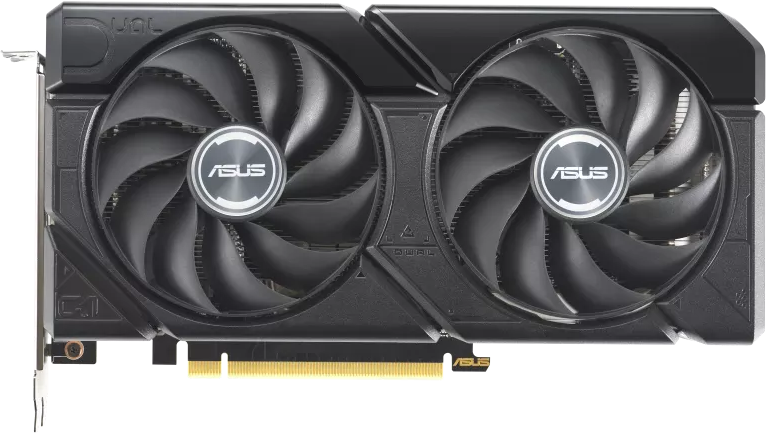

Asus Dual GeForce RTX 4070 SUPER EVO - Front

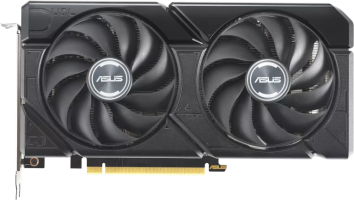

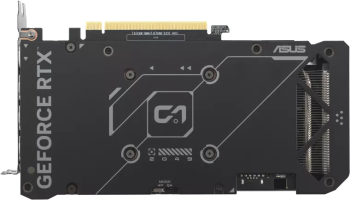

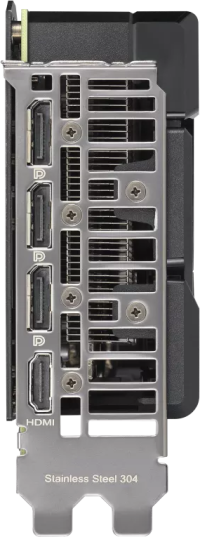

Asus Dual GeForce RTX 4070 SUPER EVO - Front Asus Dual GeForce RTX 4070 SUPER EVO - Rear Asus Dual GeForce RTX 4070 SUPER EVO - Side Asus Dual GeForce RTX 4070 SUPER EVO - Outputs
Asus Dual GeForce RTX 4070 SUPER EVO
DUAL-RTX4070S-12G-EVO
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Core
NameAD104
FoundryTSMC
Process Node5 nm
Transistors35800 million
Die Size294.0 mm²
Density121.8 /mm²
GPU Core Config
Cores7168
TMUs224
ROPs80
Memory
TechnologyGDDR6X
Size12 GB
Bus192 bit
Bandwidth504.2 GB/s
Speed21.0 Gbps
Clocks
Base clock1980 MHz
Boost Clock2505 MHz 2475 MHz
Memory Clock1313 MHz
Power
16-pin1
TDP220 w
Recommended PSU750 w
Display
DisplayPort3 1.4a
HDMI1 2.1a
HDCP2.3
Dimensions
Slots2.5
Length227.2 mm
Height123.2 mm
Width49.6 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus ROG Strix GeForce RTX 4070 SUPER OC Edition
ROG-STRIX-RTX4070S-O12G-GAMING
2670 MHz +7.9%3.2338.9 mm149.4 mm62.4 mm
Asus ROG Strix GeForce RTX 4070 SUPER
ROG-STRIX-RTX4070S-12G-GAMING
2505 MHz +1.2%3.2338.9 mm149.4 mm62.4 mm
Asus ProArt GeForce RTX 4070 SUPER OC Edition
PROART-RTX4070S-O12G
2565 MHz +3.6%2.5300 mm120 mm50 mm
Asus Dual GeForce RTX 4070 SUPER EVO White Edition
DUAL-RTX4070S-12G-EVO-WHITE
2505 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4070 SUPER EVO White OC Edition
DUAL-RTX4070S-O12G-EVO-WHITE
2550 MHz +3.0%2.5227.2 mm123.2 mm49.6 mm
Asus PRIME GeForce RTX 4070 SUPER
PRIME-RTX4070S-12G
2505 MHz +1.2%2.5269 mm120 mm50 mm
Asus PRIME GeForce RTX 4070 SUPER OC Edition
PRIME-RTX4070S-O12G
2550 MHz +3.0%2.5269 mm120 mm50 mm
Asus ProArt GeForce RTX 4070 SUPER
PROART-RTX4070S-12G
2505 MHz +1.2%2.5300 mm120 mm50 mm
Asus Dual GeForce RTX 4070 SUPER White Edition
DUAL-RTX4070S-12G-WHITE
2505 MHz +1.2%2.6267 mm133.9 mm51.1 mm
Asus Dual GeForce RTX 4070 SUPER White OC Edition
DUAL-RTX4070S-O12G-WHITE
2550 MHz +3.0%2.6267 mm133.9 mm51.1 mm
Asus Dual GeForce RTX 4070 SUPER EVO
DUAL-RTX4070S-12G-EVO
2505 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4070 SUPER EVO OC Edition
DUAL-RTX4070S-O12G-EVO
2550 MHz +3.0%2.5227.2 mm123.2 mm49.6 mm
Asus TUF Gaming GeForce RTX 4070 SUPER OC Edition
TUF-RTX4070S-O12G-GAMING
2595 MHz +4.8%3.2301 mm139 mm63 mm
Asus TUF Gaming GeForce RTX 4070 SUPER
TUF-RTX4070S-12G-GAMING
2505 MHz +1.2%3.2301 mm139 mm63 mm
Asus Dual GeForce RTX 4070 SUPER OC Edition
DUAL-RTX4070S-O12G
2550 MHz +3.0%2.6267 mm133.9 mm51.1 mm
Asus Dual GeForce RTX 4070 SUPER
DUAL-RTX4070S-12G
2505 MHz +1.2%2.6267 mm133.9 mm51.1 mm
Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC
GV-N407SWF3OC-12GD
2505 MHz +1.2%2.5261 mm126 mm50 mm
Gigabyte GeForce RTX 4070 SUPER EAGLE OC ICE
GV-N407SEAGLEOC ICE-12GD
2535 MHz +2.4%2.5261 mm126 mm50 mm
PNY GeForce RTX 4070 SUPER 12GB XLR8 Gaming VERTO EPIC-X RGB Overclocked Triple Fan
VCG4070S12TFXXPB1-O
2505 MHz +1.2%2304.9 mm119.4 mm39.9 mm
