MSI GeForce RTX 5050 GAMING Database - Specs, information & files

MSI GeForce RTX 5050 GAMING

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 5050 > MSI GeForce RTX 5050 GAMING

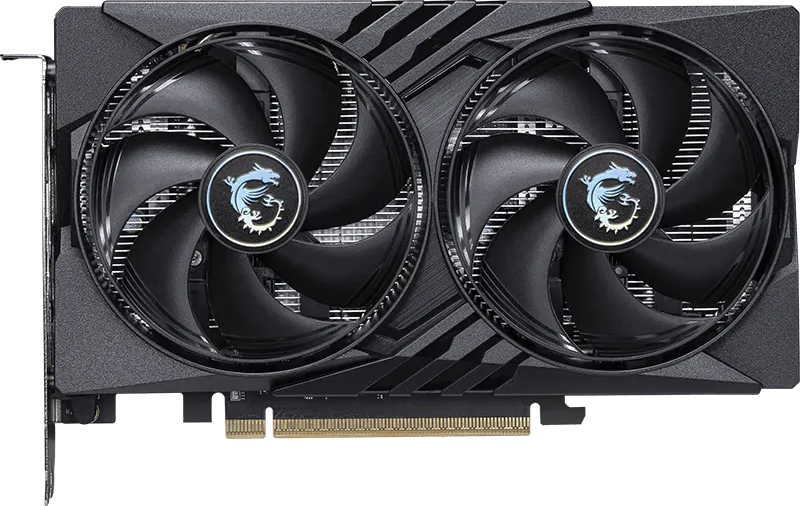

MSI GeForce RTX 5050 GAMING
G5050-8G
Fearless and bold, GAMING delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING is the ideal choice for gamers who strive to give their all.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x8
Max temperature87 C
Core
NameGB207
FoundryTSMC
Process Node5 nm
Transistors16900 million
Die Size149 mm²
Density113.4 /mm²
GPU Core Config
Cores2560
TMUs80
ROPs32
SMs20
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth168.064 GB/s
Speed10.504 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x8
Max temperature	87 C

Core
Name	GB207
Foundry	TSMC
Process Node	5 nm
Transistors	16900 million
Die Size	149 mm²
Density	113.4 /mm²

GPU Core Config
Cores	2560
TMUs	80
ROPs	32
SMs	20

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Bandwidth	168.064 GB/s
Speed	10.504 Gbps

Clocks
Base clock2310 MHz
Boost Clock2572 MHz
Memory Clock2500 MHz
Power
8-pin1
TDP130 w
Recommended PSU550 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.1
Length202 mm
Height120 mm
Width41 mm
Weight497 g

Clocks
Base clock	2310 MHz
Boost Clock	2572 MHz
Memory Clock	2500 MHz

Power
8-pin	1
TDP	130 w
Recommended PSU	550 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	2.1
Length	202 mm
Height	120 mm
Width	41 mm
Weight	497 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5050 Twin Edge OC White Edition ZT-B50500Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Twin Edge OC ZT-B50500H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Twin Edge ZT-B50500E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Low Profile ZT-B50500L-10L	2572 MHz	2	182.5 mm	69 mm	38.2 mm
Zotac GeForce RTX 5050 SOLO ZT-B50500G-10L	2572 MHz	2	164.5 mm	111.2 mm	36.4 mm
Gigabyte GeForce RTX 5050 GAMING OC GV-N5050GAMING OC-8GD	2632 MHz +2.3%	2	280 mm	117 mm	40 mm
Gigabyte GeForce RTX 5050 WINDFORCE OC V2 GV-N5050WF2OCV2-8GD	2587 MHz +0.6%	2.1	201 mm	120 mm	41 mm
Gigabyte GeForce RTX 5050 WINDFORCE OC GV-N5050WF2OC-8GD	2587 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5050 WINDFORCE GV-N5050WF2-8GD	2572 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5050 D6 GV-N5050D6-8GD	2572 MHz	2.1	145 mm	111 mm	42 mm
Gigabyte GeForce RTX 5050 OC Low Profile GV-N5050OC-8GL	2587 MHz +0.6%	2	182 mm	69 mm	36 mm
Asus Prime GeForce RTX 5050 PRIME-RTX5050-8G	2572 MHz	2.5	268.3 mm	120 mm	50 mm
Asus Prime GeForce RTX 5050 OC Edition PRIME-RTX5050-O8G	2677 MHz +4.1%	2.5	268.3 mm	120 mm	50 mm
Asus Dual GeForce RTX 5050 DUAL-RTX5050-8G	2572 MHz	2	203 mm	120.2 mm	40 mm
Asus Dual GeForce RTX 5050 OC Edition DUAL-RTX5050-O8G	2647 MHz +2.9%	2	203 mm	120.2 mm	40 mm
MSI GeForce RTX 5050 INSPIRE ITX G5050-8II	2572 MHz	2.3	147 mm	120 mm	45 mm
MSI GeForce RTX 5050 INSPIRE ITX OC G5050-8IIC	2602 MHz +1.2%	2.3	147 mm	120 mm	45 mm
MSI GeForce RTX 5050 SHADOW 2X G5050-8S2	2572 MHz	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5050 SHADOW 2X OC G5050-8S2C	2602 MHz +1.2%	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5050 GAMING OC G5050-8GC	2632 MHz +2.3%	2.1	202 mm	120 mm	41 mm
MSI GeForce RTX 5050 GAMING G5050-8G	2572 MHz	2.1	202 mm	120 mm	41 mm
MSI GeForce RTX 5050 VENTUS 2X G5050-8V2	2572 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5050 VENTUS 2X OC G5050-8V2C	2602 MHz +1.2%	2.1	197 mm	120 mm	41 mm
Palit GeForce RTX 5050 StormX NE65050019P1-GB2070F	2572 MHz	2	169.9 mm	118 mm	39.8 mm
Palit GeForce RTX 5050 StormX OC NE65050T19P1-GB2070F	2617 MHz +1.7%	2	169.9 mm	118 mm	39.8 mm
Palit GeForce RTX 5050 Dual NE65050019P1-GB2070D	2572 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5050 Dual OC NE65050S19P1-GB2070D	2647 MHz +2.9%	2	262.1 mm	126.3 mm	40.1 mm
