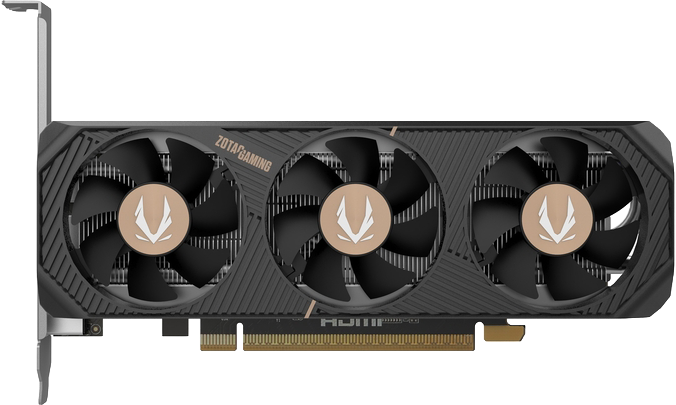

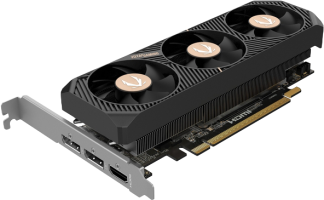

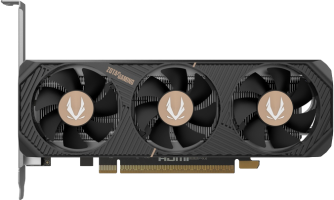

Zotac GeForce RTX 5050 Low Profile
ZT-B50500L-10L
Made for ITX and Small Form Factor enthusiasts, this card is densely packed with performance, and is powered by the NVIDIA Blackwell architecture, DLSS4 and Multi-frame Generation so even the smallest PC builds have the power to play top games with smooth framerates.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x8
Max temperature87 C
Core
NameGB207
FoundryTSMC
Process Node5 nm
Transistors16900 million
Die Size149 mm²
Density113.4 /mm²
GPU Core Config
Cores2560
TMUs80
ROPs32
SMs20
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth168.064 GB/s
Speed10.504 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x8
Max temperature	87 C

Core
Name	GB207
Foundry	TSMC
Process Node	5 nm
Transistors	16900 million
Die Size	149 mm²
Density	113.4 /mm²

GPU Core Config
Cores	2560
TMUs	80
ROPs	32
SMs	20

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Bandwidth	168.064 GB/s
Speed	10.504 Gbps

Clocks
Base clock2310 MHz
Boost Clock2572 MHz
Memory Clock2500 MHz
Power
8-pin1
TDP130 w
Recommended PSU550 w

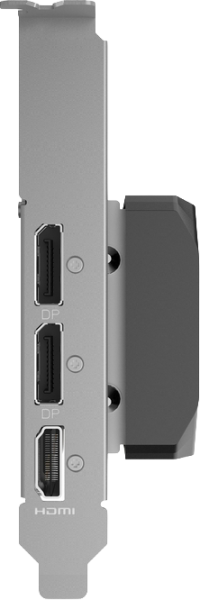

Display
DisplayPort2 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2
Length182.5 mm
Height69 mm
Width38.2 mm

Clocks
Base clock	2310 MHz
Boost Clock	2572 MHz
Memory Clock	2500 MHz

Power
8-pin	1
TDP	130 w
Recommended PSU	550 w

Display
DisplayPort	2 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	2
Length	182.5 mm
Height	69 mm
Width	38.2 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5050 Twin Edge OC White Edition ZT-B50500Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Twin Edge OC ZT-B50500H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Twin Edge ZT-B50500E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5050 Low Profile ZT-B50500L-10L	2572 MHz	2	182.5 mm	69 mm	38.2 mm
Zotac GeForce RTX 5050 SOLO ZT-B50500G-10L	2572 MHz	2	164.5 mm	111.2 mm	36.4 mm
Gigabyte GeForce RTX 5050 GAMING OC GV-N5050GAMING OC-8GD	2632 MHz +2.3%	2	280 mm	117 mm	40 mm
Gigabyte GeForce RTX 5050 WINDFORCE OC V2 GV-N5050WF2OCV2-8GD	2587 MHz +0.6%	2.1	201 mm	120 mm	41 mm
Gigabyte GeForce RTX 5050 WINDFORCE OC GV-N5050WF2OC-8GD	2587 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5050 WINDFORCE GV-N5050WF2-8GD	2572 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5050 D6 GV-N5050D6-8GD	2572 MHz	2.1	145 mm	111 mm	42 mm
Gigabyte GeForce RTX 5050 OC Low Profile GV-N5050OC-8GL	2587 MHz +0.6%	2	182 mm	69 mm	36 mm
Asus Prime GeForce RTX 5050 PRIME-RTX5050-8G	2572 MHz	2.5	268.3 mm	120 mm	50 mm
Asus Prime GeForce RTX 5050 OC Edition PRIME-RTX5050-O8G	2677 MHz +4.1%	2.5	268.3 mm	120 mm	50 mm
Asus Dual GeForce RTX 5050 DUAL-RTX5050-8G	2572 MHz	2	203 mm	120.2 mm	40 mm
Asus Dual GeForce RTX 5050 OC Edition DUAL-RTX5050-O8G	2647 MHz +2.9%	2	203 mm	120.2 mm	40 mm
MSI GeForce RTX 5050 INSPIRE ITX G5050-8II	2572 MHz	2.3	147 mm	120 mm	45 mm
MSI GeForce RTX 5050 INSPIRE ITX OC G5050-8IIC	2602 MHz +1.2%	2.3	147 mm	120 mm	45 mm
MSI GeForce RTX 5050 SHADOW 2X G5050-8S2	2572 MHz	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5050 SHADOW 2X OC G5050-8S2C	2602 MHz +1.2%	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5050 GAMING OC G5050-8GC	2632 MHz +2.3%	2.1	202 mm	120 mm	41 mm
MSI GeForce RTX 5050 GAMING G5050-8G	2572 MHz	2.1	202 mm	120 mm	41 mm
MSI GeForce RTX 5050 VENTUS 2X G5050-8V2	2572 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5050 VENTUS 2X OC G5050-8V2C	2602 MHz +1.2%	2.1	197 mm	120 mm	41 mm
Palit GeForce RTX 5050 StormX NE65050019P1-GB2070F	2572 MHz	2	169.9 mm	118 mm	39.8 mm
Palit GeForce RTX 5050 StormX OC NE65050T19P1-GB2070F	2617 MHz +1.7%	2	169.9 mm	118 mm	39.8 mm
Palit GeForce RTX 5050 Dual NE65050019P1-GB2070D	2572 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5050 Dual OC NE65050S19P1-GB2070D	2647 MHz +2.9%	2	262.1 mm	126.3 mm	40.1 mm
