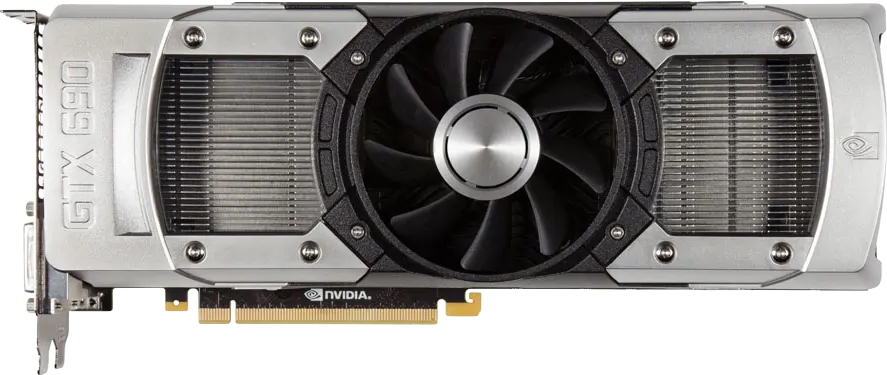

NVIDIA GTX 690

The GTX 690 is a consumer-grade GPU from NVIDIA's GeForce 600 series, built on the Kepler architecture using the GK104 chip. Equipped with 2 GB of GDDR5 memory on a 256-bit bus, it delivers 192.3 GB/s of bandwidth at 6.0 Gbps.

Launched on 2 May, 2012, the GTX 690 carried a starting price of $999.

GPUs.net

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps

Information
Platform	Consumer
Architecture	Kepler
Generation	GeForce 600
Previous Gen	GeForce 500
Next Gen	GeForce 700
Interface	PCIe 3.0 x16

Core
Name	GK104
Foundry	TSMC
Process Node	28 nm
Transistors	3540 million
Die Size	294.0 mm²
Density	12.0 /mm²

GPU Core Config
Cores	1536
TMUs	128
ROPs	32

Memory
Technology	GDDR5
Size	2 GB
Bus	256 bit
Bandwidth	192.3 GB/s
Speed	6.0 Gbps

Clocks
Base clock915 MHz
Boost Clock1019 MHz
Memory Clock1502 MHz
Power
8-pin2
TDP300 w
Recommended PSU700 w

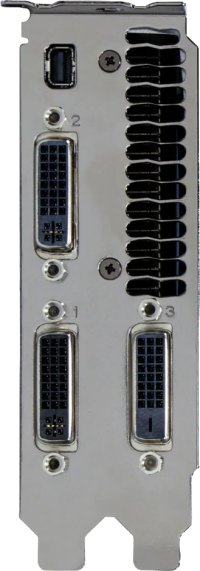

Display
Mini DisplayPort1
DVI3
Dimensions
Slots2
Length279 mm
Height111 mm
Width38 mm

Clocks
Base clock	915 MHz
Boost Clock	1019 MHz
Memory Clock	1502 MHz

Power
8-pin	2
TDP	300 w
Recommended PSU	700 w

Display
Mini DisplayPort	1
DVI	3

Dimensions
Slots	2
Length	279 mm
Height	111 mm
Width	38 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce GTX 690 N690GTX-P3D4GD5	1019 MHz	2	280 mm	111 mm	34 mm
