MSI GeForce GTX 690
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 690 > MSI GeForce GTX 690

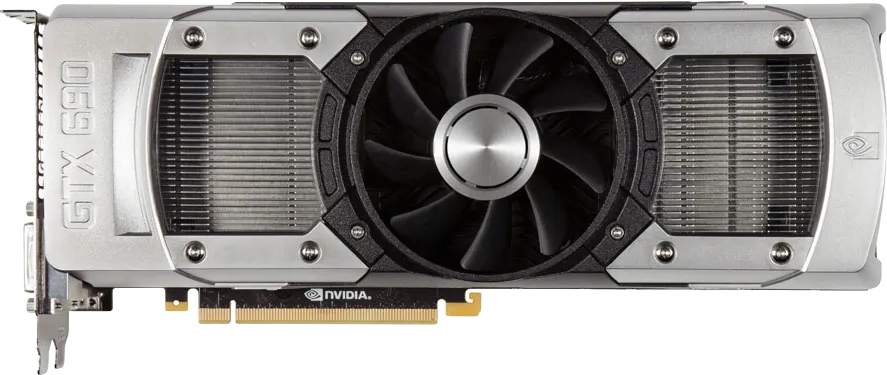

MSI GeForce GTX 690 - Front

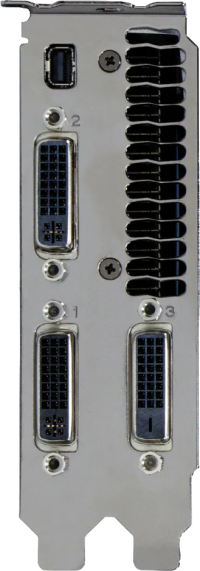

MSI GeForce GTX 690 - Front MSI GeForce GTX 690 - Rear MSI GeForce GTX 690 - Side MSI GeForce GTX 690 - Outputs
MSI GeForce GTX 690
N690GTX-P3D4GD5
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps
Clocks
Base clock915 MHz
Boost Clock1019 MHz
Memory Clock1502 MHz
Power
8-pin2
TDP300 w
Recommended PSU700 w
Display
Mini DisplayPort1
DVI3
DVI-D DL1
DVI-I2
Dimensions
Slots2
Length280 mm 279 mm
Height111 mm
Width34 mm 38 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 690
N690GTX-P3D4GD5
1019 MHz2280 mm111 mm34 mm
