EVGA GeForce GTX 1070 SC
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1070 > EVGA GeForce GTX 1070 SC

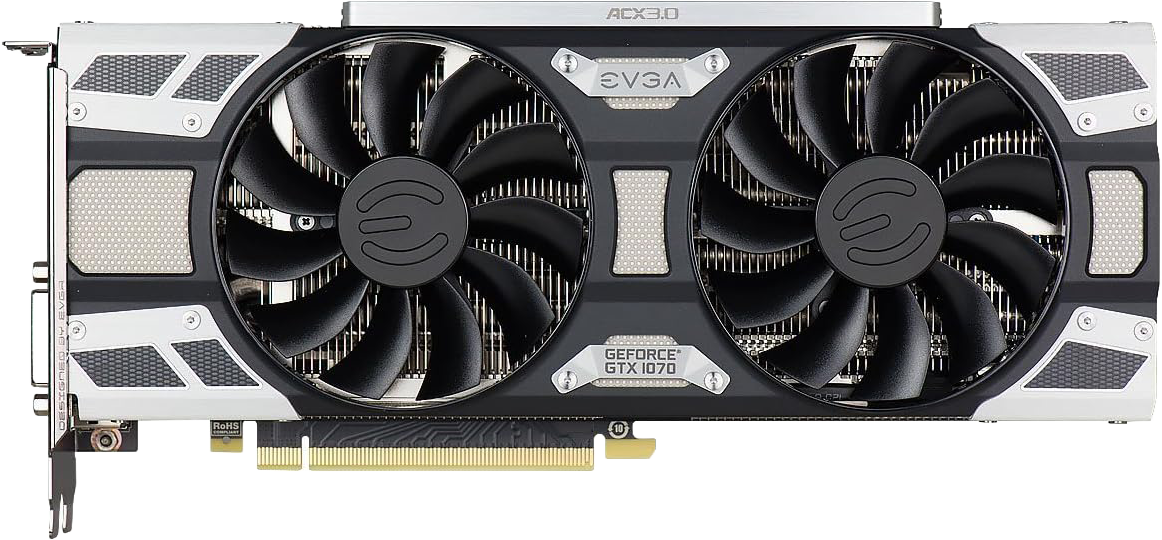

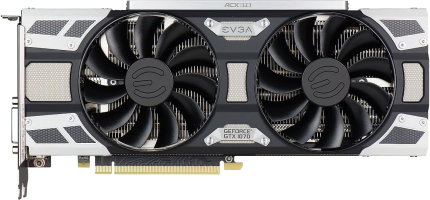

EVGA GeForce GTX 1070 SC - Front

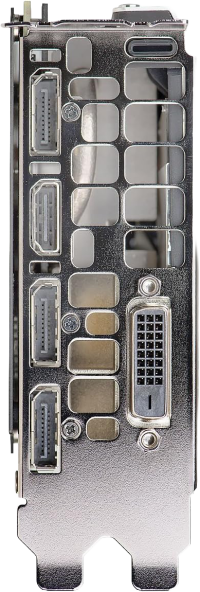

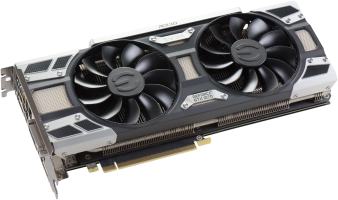

EVGA GeForce GTX 1070 SC - Front EVGA GeForce GTX 1070 SC - Side EVGA GeForce GTX 1070 SC - Outputs
EVGA GeForce GTX 1070 SC
08G-P4-6173-KR
Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
Interface PCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores1920
TMUs120
ROPs64
Memory
TechnologyGDDR5
Size8 GB
Bus256 bit
Bandwidth256.3 GB/s
Speed8.0 Gbps
Clocks
Base clock1594 MHz 1506 MHz
Boost Clock1784 MHz 1683 MHz
Memory Clock2002 MHz
Power
8-pin1
TDP150 w
Recommended PSU450 w 500 w
Display
DisplayPort3 1.4
HDMI1 2.0b
DVI1
Resolution7680x4320
Dimensions
Slots2
Length266.7 mm
Height111.2 mm
Width40 mm
Bios files
86.04.50.00.72
N/A
Size: 258.5 KB
Build: 2016-10-07
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus GTX 1070 Founders Edition
900-1G411-0020-000
1683 MHz2266.7 mm111.2 mm40 mm
EVGA GeForce GTX 1070 SC
08G-P4-6173-KR
1784 MHz +6.0%2
