Name: MSI GeForce GTX 1070 Quick Silver
Brand: MSI

MSI GeForce GTX 1070 Quick Silver

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1070 > MSI GeForce GTX 1070 Quick Silver

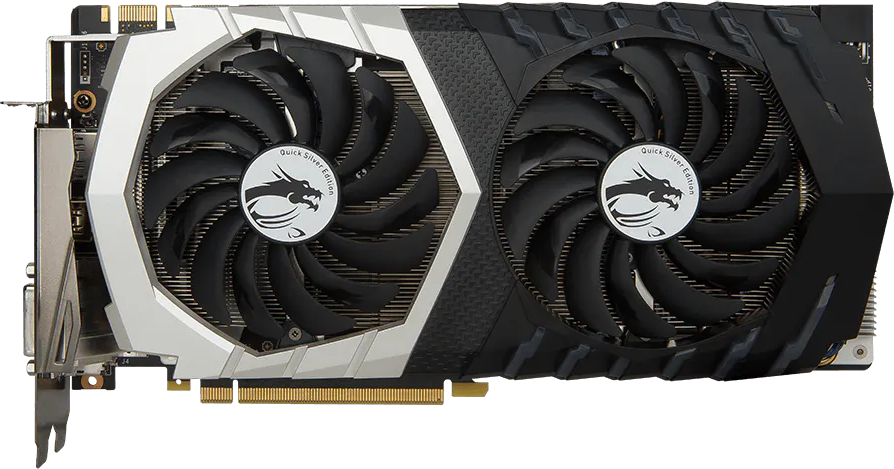

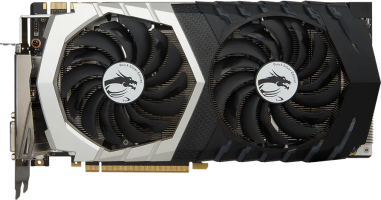

MSI GeForce GTX 1070 Quick Silver - Front

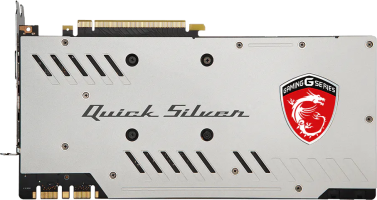

MSI GeForce GTX 1070 Quick Silver - Rear

MSI GeForce GTX 1070 Quick Silver - Side

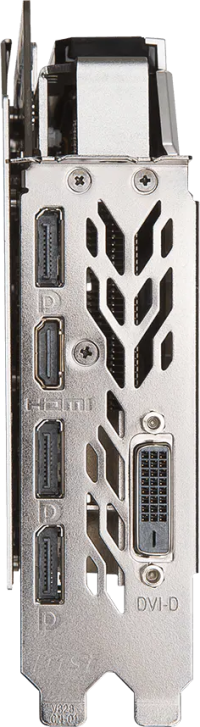

MSI GeForce GTX 1070 Quick Silver - Outputs

MSI GeForce GTX 1070 Quick Silver
GPUs.net

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
Interface PCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores1920
TMUs120
ROPs64
Memory
TechnologyGDDR5
Size8 GB
Bus256 bit
Bandwidth256.3 GB/s
Speed8.0 Gbps

Clocks
Base clock1531 MHz 1506 MHz
Boost Clock1721 MHz 1683 MHz
Memory Clock2002 MHz
Power
6-pin1
8-pin1
TDP150 w
Recommended PSU500 w
Display
DisplayPort3 1.4
HDMI1 2.0b
DVI-D DL1
Resolution7680x4320
Dimensions
Slots2.1 2
Length279 mm 266.7 mm
Height140 mm 111.2 mm
Width42 mm 40 mm
Weight1096 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GTX 1070 Founders Edition 900-1G411-0020-000	1683 MHz	2	266.7 mm	111.2 mm	40 mm
EVGA GeForce GTX 1070 SC 08G-P4-6173-KR	1784 MHz +6.0%	2
MSI GeForce GTX 1070 Quick Silver	1721 MHz +2.3%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 Quick Silver OC	1771 MHz +5.2%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING X	1797 MHz +6.8%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING	1721 MHz +2.3%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING Z	1860 MHz +10.5%	2.1	279 mm	140 mm	42 mm
