Name: MSI GeForce GTX 1070 GAMING Z
Brand: MSI

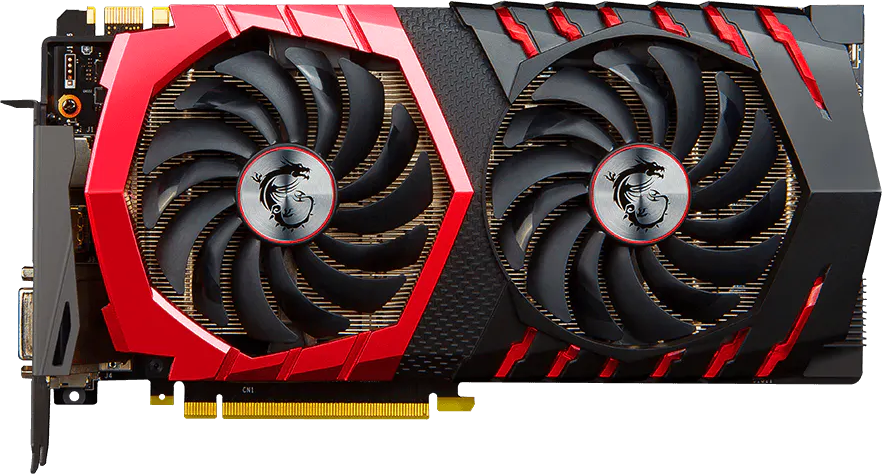

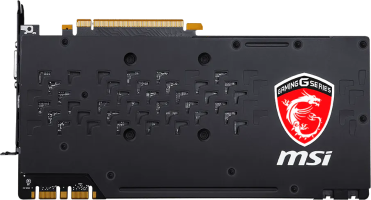

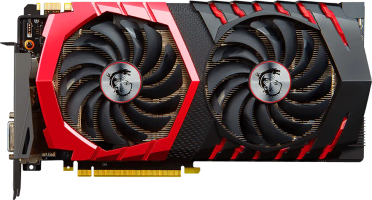

MSI GeForce GTX 1070 GAMING Z

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1070 > MSI GeForce GTX 1070 GAMING Z

MSI GeForce GTX 1070 GAMING Z
GPUs.net

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
Interface PCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores1920
TMUs120
ROPs64
Memory
TechnologyGDDR5
Size8 GB
Bus256 bit
Bandwidth256.3 GB/s
Speed8.0 Gbps

Clocks
Base clock1657 MHz 1506 MHz
Boost Clock1860 MHz 1683 MHz
Memory Clock2002 MHz
Power
6-pin1
8-pin1
TDP150 w
Recommended PSU500 w

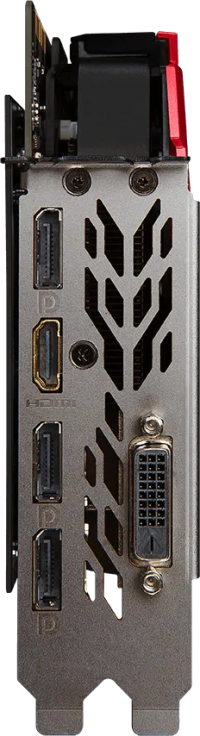

Display
DisplayPort3 1.4
HDMI1 2.0b
DVI-D DL1
Resolution7680x4320
Dimensions
Slots2.1 2
Length279 mm 266.7 mm
Height140 mm 111.2 mm
Width42 mm 40 mm
Weight1096 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GTX 1070 Founders Edition 900-1G411-0020-000	1683 MHz	2	266.7 mm	111.2 mm	40 mm
EVGA GeForce GTX 1070 SC 08G-P4-6173-KR	1784 MHz +6.0%	2
MSI GeForce GTX 1070 Quick Silver	1721 MHz +2.3%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 Quick Silver OC	1771 MHz +5.2%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING X	1797 MHz +6.8%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING	1721 MHz +2.3%	2.1	279 mm	140 mm	42 mm
MSI GeForce GTX 1070 GAMING Z	1860 MHz +10.5%	2.1	279 mm	140 mm	42 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Name	GP104
Interface	PCIe 3.0 x16

Core
Name	GP104
Foundry	TSMC
Process Node	16 nm
Transistors	7200 million
Die Size	314.0 mm²
Density	22.9 /mm²

Memory
Technology	GDDR5
Size	8 GB
Bus	256 bit
Bandwidth	256.3 GB/s
Speed	8.0 Gbps

Clocks
Base clock	1657 MHz 1506 MHz
Boost Clock	1860 MHz 1683 MHz
Memory Clock	2002 MHz

Dimensions
Slots	2.1 2
Length	279 mm 266.7 mm
Height	140 mm 111.2 mm
Width	42 mm 40 mm
Weight	1096 g

GPU Core Config
Cores	1920
TMUs	120
ROPs	64

Power
6-pin	1
8-pin	1
TDP	150 w
Recommended PSU	500 w

Display
DisplayPort	3 1.4
HDMI	1 2.0b
DVI-D DL	1
Resolution	7680x4320
