EVGA GeForce GTX 760 SC
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 760 > EVGA GeForce GTX 760 SC

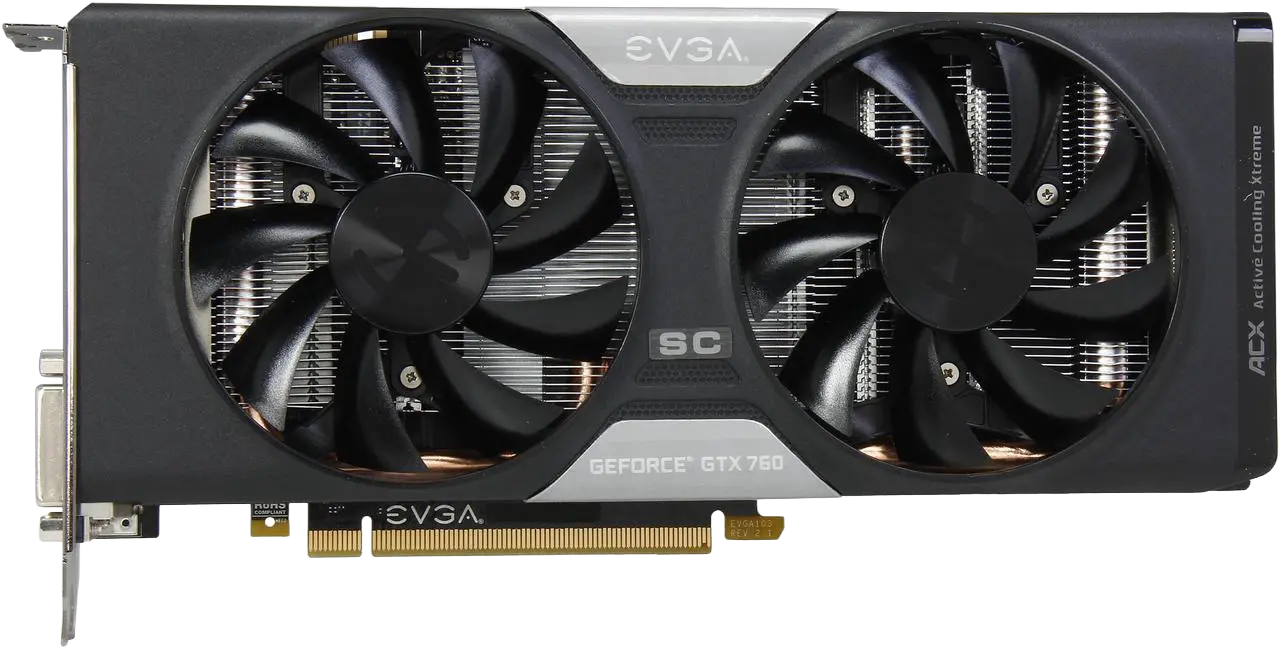

EVGA GeForce GTX 760 SC - Front
EVGA GeForce GTX 760 SC - Front EVGA GeForce GTX 760 SC - Rear EVGA GeForce GTX 760 SC - Side EVGA GeForce GTX 760 SC - Outputs
EVGA GeForce GTX 760 SC
02G-P4-2765-KR
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1152
TMUs96
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps
Clocks
Base clock1072 MHz 980 MHz
Boost Clock1137 MHz 1033 MHz
Memory Clock1502 MHz
Power
6-pin1
8-pin1
TDP170 w
Recommended PSU500 w 450 w
Display
DisplayPort1
HDMI1
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length243 mm
Height111 mm
Width38 mm
Bios files
80.04.F0.00.60
N/A
Size: 165.5 KB
Build: 2014-02-12
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Gainward GeForce GTX 760
NE5X76001042-1042F
1033 MHz
Asus ROG Mars GTX 760
MARS760-4GD5
1072 MHz +3.8%2280 mm118 mm40 mm
MSI GeForce GTX 760 Gaming OC
N760 TF 2GD5/OC
1150 MHz +11.3%2260 mm126 mm38 mm
EVGA GeForce GTX 760 SC
02G-P4-2765-KR
1137 MHz +10.1%2243 mm111 mm38 mm
