Asus GeForce GTX 770 DirectCU II OC
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 770 > Asus GeForce GTX 770 DirectCU II OC

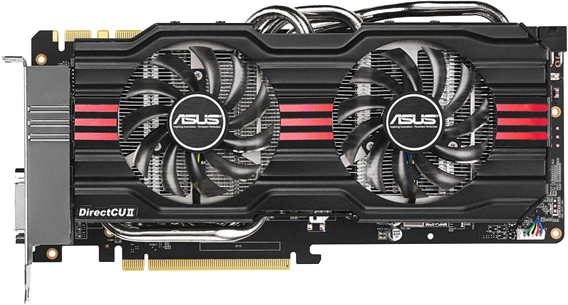

Asus GeForce GTX 770 DirectCU II OC - Front
Asus GeForce GTX 770 DirectCU II OC - Front Asus GeForce GTX 770 DirectCU II OC - Outputs
Asus GeForce GTX 770 DirectCU II OC
GTX770-DC2OC-2GD5
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth336.6 GB/s
Speed7.0 Gbps
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Clocks
Base clock1058 MHz 1046 MHz
Boost Clock1110 MHz 1085 MHz
Memory Clock1753 MHz
Power
6-pin1
8-pin1
TDP230 w
Recommended PSU550 w
Display
DisplayPort1 1.2
HDMI1 1.4
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length266 mm
Height130 mm
Width40 mm
Bios files
80.04.EB.00.2A
N/A
Size: 188.5 KB
Build: 2014-01-03
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 770 LIGHTNING
N770 LIGHTNING
1202 MHz +10.8%2.5280 mm129 mm49.2 mm
MSI GeForce GTX 770 GAMING OC
N770 TF 2GD5/OC
1198 MHz +10.4%1.9260 mm126 mm38 mm
Asus GeForce GTX 770 DirectCU II OC
GTX770-DC2OC-2GD5
1110 MHz +2.3%2266 mm130 mm40 mm
Zotac GeForce GTX 770
29Z-3N255-100Z8
1110 MHz +2.3%2270 mm112 mm36 mm
