Asus Turbo GeForce GTX 970 OC
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 970 > Asus Turbo GeForce GTX 970 OC

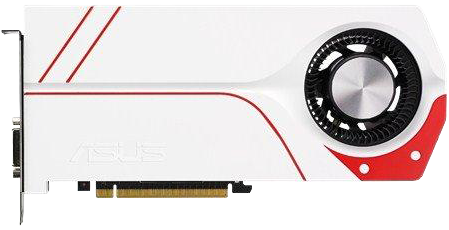

Asus Turbo GeForce GTX 970 OC - Front

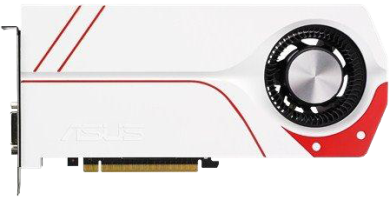

Asus Turbo GeForce GTX 970 OC - Front
Asus Turbo GeForce GTX 970 OC
TURBO-GTX970-OC-4GD5
Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores1664
TMUs104
ROPs56
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps
Clocks
Base clock1089 MHz 1050 MHz
Boost Clock1228 MHz 1178 MHz
Memory Clock1753 MHz
Power
8-pin1
TDP148 w
Recommended PSU300 w
Display
DisplayPort1
HDMI1
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length264 mm
Height122 mm
Width36 mm
Bios files
84.04.36.00.85
N/A
Size: 196.5 KB
Build: 2014-11-12
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
NVIDIA GTX 970 Reference
900-1G401-0010-000
1178 MHz2267 mm111 mm40 mm
MSI GeForce GTX 970 Gaming Golden Edition
1317 MHz +11.8%2.2267 mm137 mm43 mm
MSI GeForce GTX 970 Gaming 100ME
1279 MHz +8.6%2.3277 mm140 mm45 mm
MSI GeForce GTX 970 Gaming
1279 MHz +8.6%2277 mm140 mm35 mm
MSI GeForce GTX 970 Gaming LE
1216 MHz +3.2%2277 mm140 mm35 mm
MSI GeForce GTX 970 OCV1
GTX 970 4GD5 OC
1216 MHz +3.2%2269 mm111 mm38 mm
MSI GeForce GTX 970 Titanium OC
GTX 970 4GD5T TITANIUM OC
1241 MHz +5.3%2279 mm125 mm36 mm
MSI GeForce GTX 970 Armor 2X OC
GTX 970 4GD5T OC
1241 MHz +5.3%2279 mm125 mm36 mm
Asus Turbo GeForce GTX 970 OC
TURBO-GTX970-OC-4GD5
1228 MHz +4.2%2264 mm122 mm36 mm
