MSI GeForce GTX 970 GAMING Golden Edition
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 970 > MSI GeForce GTX 970 GAMING Golden Edition

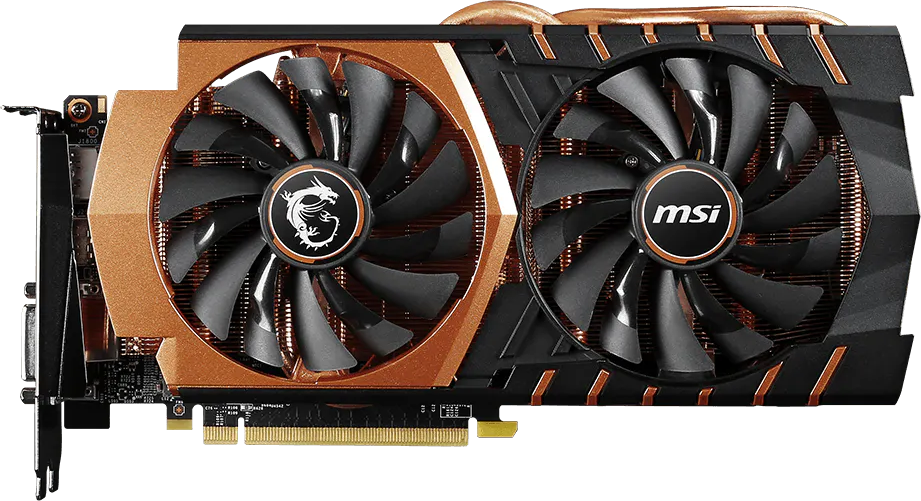

MSI GeForce GTX 970 GAMING Golden Edition - Front
MSI GeForce GTX 970 GAMING Golden Edition - Front
MSI GeForce GTX 970 GAMING Golden Edition
Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores1664
TMUs104
ROPs56
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps
Clocks
Base clock1165 MHz 1050 MHz
Boost Clock1317 MHz 1178 MHz
Memory Clock1753 MHz
Power
6-pin1
8-pin1
TDP145 w 148 w
Recommended PSU500 w 300 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2.2 2
Length267 mm
Height137 mm
Width43 mm
Weight1170 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
NVIDIA GTX 970 Reference Design
900-1G401-0010-000
1178 MHz2267 mm111 mm40 mm

MSI GeForce GTX 970 GAMING Golden Edition
1317 MHz +11.8%2.2267 mm137 mm43 mm
