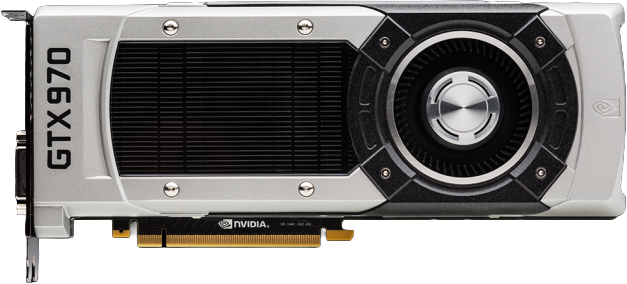

NVIDIA GTX 970 Reference Design - Front
NVIDIA GTX 970 Reference Design - Front
NVIDIA GTX 970 Reference Design
900-1G401-0010-000
Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores1664
TMUs104
ROPs56
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps
Clocks
Base clock1050 MHz
Boost Clock1178 MHz
Memory Clock1753 MHz
Power
6-pin2
TDP148 w
Recommended PSU300 w
Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2
Length267 mm
Height111 mm
Width40 mm
Bios files
84.04.1F.00.01
N/A
Size: 196.5 KB
Build: 2014-08-26
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
NVIDIA GTX 970 Reference Design
900-1G401-0010-000
1178 MHz2267 mm111 mm40 mm
