Asus ROG Matrix GTX 980

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 980 > Asus ROG Matrix GTX 980

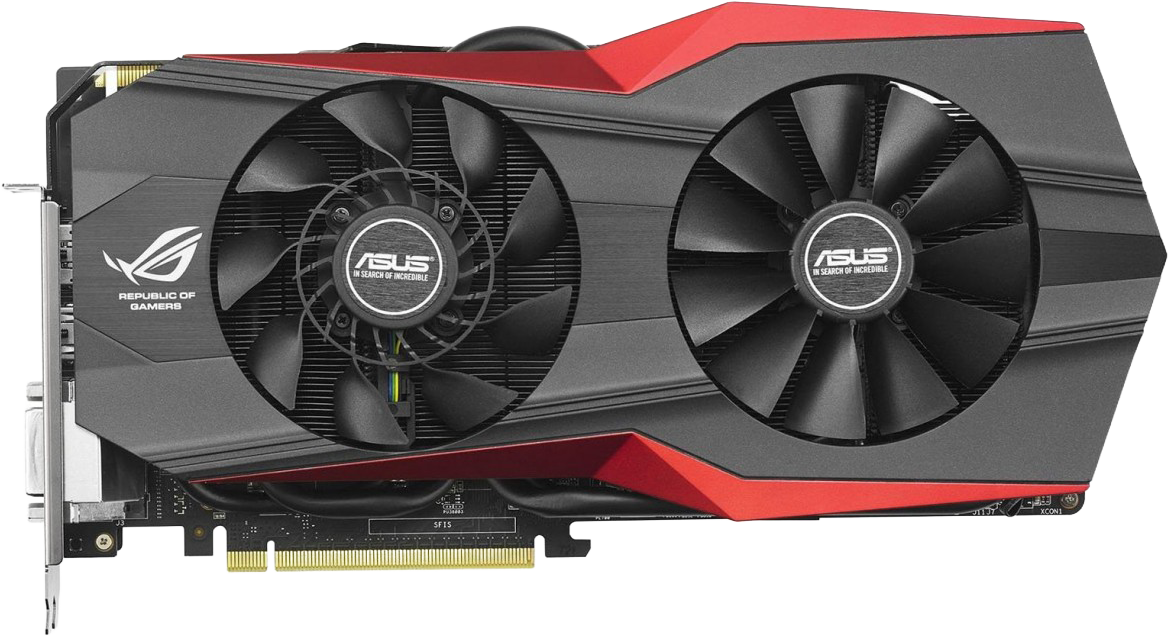

Asus ROG Matrix GTX 980
MATRIX-GTX980-4GD5

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398 mm²
Density13.1 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.384 GB/s
Speed7.012 Gbps

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM204
Foundry	TSMC
Process Node	28 nm
Transistors	5200 million
Die Size	398 mm²
Density	13.1 /mm²

GPU Core Config
Cores	2048
TMUs	128
ROPs	64

Memory
Technology	GDDR5
Size	4 GB
Bus	256 bit
Bandwidth	224.384 GB/s
Speed	7.012 Gbps

Clocks
Base clock1127 MHz
Boost Clock1216 MHz
Memory Clock1753 MHz
Power
6-pin2
TDP165 w
Recommended PSU450 w
Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2

Clocks
Base clock	1127 MHz
Boost Clock	1216 MHz
Memory Clock	1753 MHz

Power
6-pin	2
TDP	165 w
Recommended PSU	450 w

Display
DisplayPort	3
HDMI	1
DVI	1

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix GTX 980 Gold Edition GOLD20TH-GTX980-P-4GD5	1431 MHz +17.7%	2	mm	mm	mm
Asus ROG Matrix GTX 980 MATRIX-GTX980-4GD5	1216 MHz		mm	mm	mm
