Name: Asus ROG Matrix GTX 980 Platinum
Brand: Asus
SKU: MATRIX-GTX980-P-4GD5

Asus ROG Matrix GTX 980 Platinum

Specs, info and data

The GPU Database

Featuring 310+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 980 > Asus ROG Matrix GTX 980 Platinum

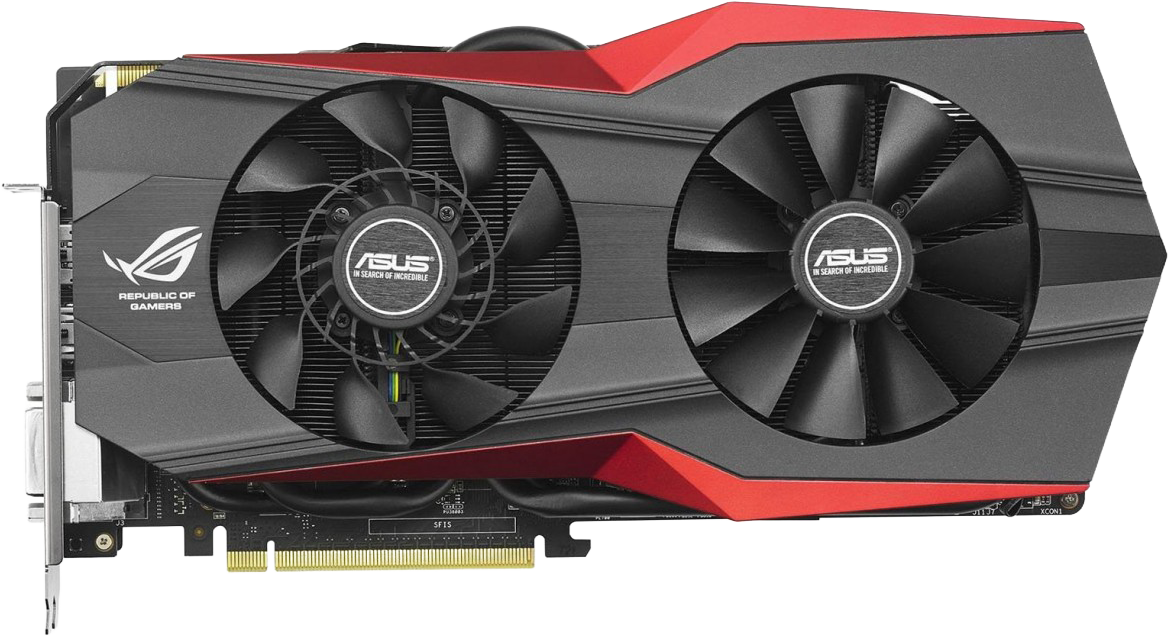

Asus ROG Matrix GTX 980 Platinum - Front

Asus ROG Matrix GTX 980 Platinum
MATRIX-GTX980-P-4GD5
GPUs.net

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps

Clocks
Base clock1241 MHz 1127 MHz
Boost Clock1342 MHz 1216 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP165 w
Recommended PSU450 w
Display
DisplayPort3 1.2
HDMI1 2.0
DVI1
Dimensions
Slots2
Length297 mm 267 mm
Height111 mm
Width40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GOLD20TH GTX 980 Platinum GOLD20TH-GTX980-P-4GD5	1431 MHz +17.7%	2
Asus ROG Matrix GTX 980 MATRIX-GTX980-4GD5	1216 MHz	2	297 mm
NVIDIA GTX 980 Reference 900-1G401-000-000	1216 MHz	2	267 mm	111 mm	40 mm
Asus ROG Poseidon GTX 980 Platinum POSEIDON-GTX980-P-4GD5	1279 MHz +5.2%	2	287 mm
Asus ROG Poseidon GTX 980 POSEIDON-GTX980-4GD5	1216 MHz	2	287 mm
MSI GeForce GTX 980 GAMING	1317 MHz +8.3%	2	279 mm	140 mm	36 mm
MSI GeForce GTX 980 GAMING LE	1253 MHz +3.0%	2	279 mm	140 mm	936 mm
Asus STRIX GTX 980 DirectCU II OC STRIX-GTX980-DC2OC-4GD5	1279 MHz +5.2%	2	289 mm
Asus ROG Matrix GTX 980 Platinum MATRIX-GTX980-P-4GD5	1342 MHz +10.4%	2	297 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM204
Foundry	TSMC
Process Node	28 nm
Transistors	5200 million
Die Size	398.0 mm²
Density	13.1 /mm²

Memory
Technology	GDDR5
Size	4 GB
Bus	256 bit
Bandwidth	224.4 GB/s
Speed	7.0 Gbps

Clocks
Base clock	1241 MHz 1127 MHz
Boost Clock	1342 MHz 1216 MHz
Memory Clock	1753 MHz

GPU Core Config
Cores	2048
TMUs	128
ROPs	64

Power
8-pin	2
TDP	165 w
Recommended PSU	450 w

Display
DisplayPort	3 1.2
HDMI	1 2.0
DVI	1

Dimensions
Slots	2
Length	297 mm 267 mm
Height	111 mm
Width	40 mm
