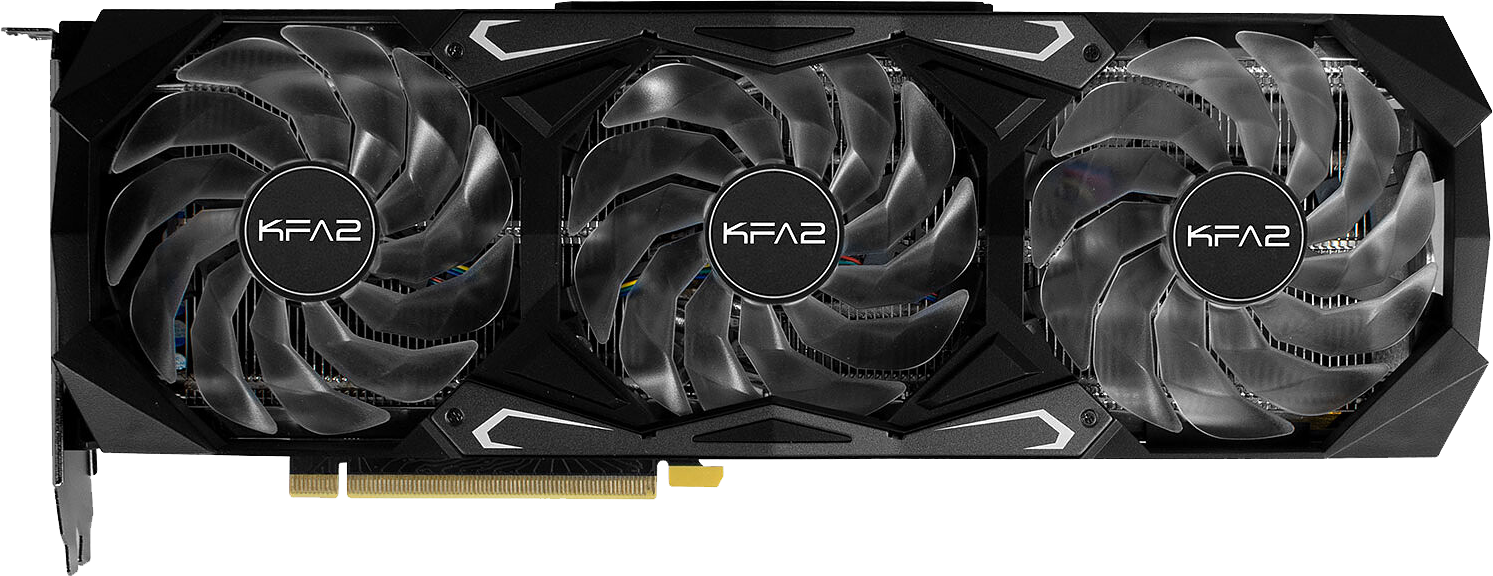

KFA2 GeForce RTX 3080 SG LHR
KFA2 GeForce RTX 3080 SG LHR
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA102
FoundrySamsung
Process Node8 nm
Transistors28300 million
Die Size628 mm²
Density45.1 /mm²
GPU Core Config
Cores8704
TMUs272
ROPs96
SMs68
Tensor Cores272
RT Cores68
Memory
TechnologyGDDR6X
Size10 GB
Bus320 bit
Bandwidth760.32 GB/s
Speed19.008 Gbps
Clocks
Base clock1440 MHz
Boost Clock1725 MHz 1710 MHz
Memory Clock1188 MHz
Power
8-pin2
TDP320 w
Recommended PSU750 w
Display
DisplayPort3
HDMI1
Resolution7680x4320
Monitors4

Bios files
94.02.71.40.62
N/A
Size: 976 KB
Build: 2021-03-26
