Database > GPUs > NVIDIA RTX 4070 Ti > MSI RTX 4070 Ti

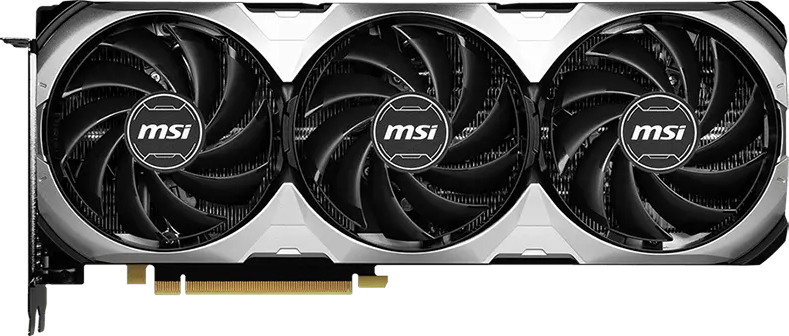

MSI RTX 4070 Ti - Front

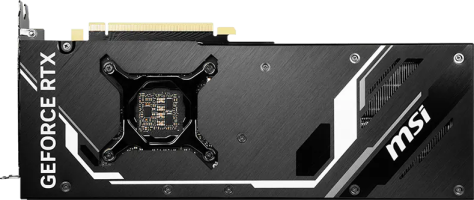

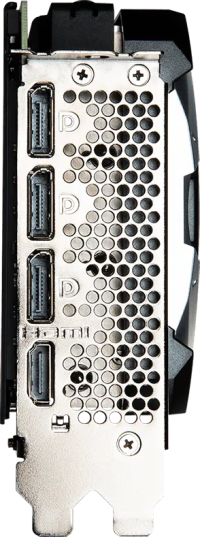

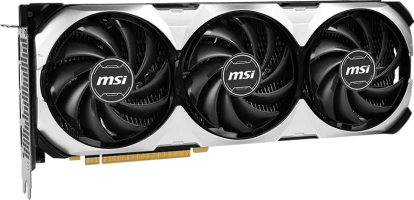

MSI RTX 4070 Ti - Front MSI RTX 4070 Ti - Rear MSI RTX 4070 Ti - Side MSI RTX 4070 Ti - Outputs
MSI RTX 4070 Ti
GEFORCE RTX 4070 TI VENTUS 3X OC
Available at Amazon from $1345.00. Buy now!
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD104
FoundryTSMC
Process Node5 nm
Transistors35800 million
Die Size294.0 mm²
Density121.8 /mm²
GPU Core Config
Cores7680
TMUs240
ROPs80
Tensor Cores240
RT Cores60
Memory
TechnologyGDDR6X
Size12 GB
Bus192 bit
Bandwidth504.2 GB/s
Speed21.0 Gbps
Clocks
Base clock2310 MHz
Boost Clock2655 MHz 2610 MHz
Memory Clock1313 MHz
Power
16-pin1
TDP285 w
Recommended PSU700 w
Display
DisplayPort3 1.4a
HDMI1 2.1a
Monitors4
Dimensions
Slots2.6
Length308 mm
Height123 mm
Width51 mm
Weight1150 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus TUF Gaming GeForce RTX 4070 Ti White OC Edition
TUF-RTX4070TI-O12G-WHITE-GAMING
2760 MHz +5.7%3.3305 mm138 mm65 mm
Asus ProArt GeForce RTX 4070 Ti
PROART-RTX4070TI-12G
2640 MHz +1.1%2.5300 mm120 mm50 mm
Asus ProArt GeForce RTX 4070 Ti OC edition
PROART-RTX4070TI-O12G
2760 MHz +5.7%2.5300 mm120 mm50 mm
Asus TUF Gaming GeForce RTX 4070 Ti OC Edition
TUF-RTX4070TI-O12G-GAMING
2760 MHz +5.7%3.3305 mm138 mm65 mm
Asus TUF Gaming GeForce RTX 4070 Ti
TUF-RTX4070TI-12G-GAMING
2640 MHz +1.1%3.3305 mm138 mm65 mm
Asus ROG Strix GeForce RTX 4070 Ti
ROG-STRIX-RTX4070TI-12G-GAMING-MODEL
2640 MHz +1.1%3.2336 mm150 mm63 mm
Asus ROG Strix GeForce RTX 4070 Ti OC Edition
ROG-STRIX-RTX4070TI-O12G-GAMING-MODEL
2790 MHz +6.9%3.2336 mm150 mm63 mm
Gigabyte AORUS GeForce RTX 4070 Ti ELITE
GV-N407TAORUS E-12GD
2655 MHz +1.7%3.6342 mm153 mm70.6 mm
Gigabyte GeForce RTX 4070 Ti AERO OC
GV-N407TAERO OC-12GD
2640 MHz +1.1%2.9336 mm140 mm58 mm
Gigabyte GeForce RTX 4070 Ti EAGLE OC
GV-N407TEAGLE OC-12GD
2625 MHz +0.6%2.9301 mm136 mm58 mm
PNY GeForce RTX 4070 Ti SUPER XLR8 Gaming VERTO EPIC-X RGB Overclocked Triple Fan
VCG4070TS16TFXXPB1-O
2655 MHz +1.7%3.3332.7 mm136.4 mm66.5 mm

PNY GeForce RTX 4070 Ti SUPER XLR8 Gaming VERTO EPIC-X RGB Triple Fan
VCG4070TS16TFXXPB1
2610 MHz3.3332.7 mm136.4 mm66.5 mm
MSI RTX 4070 Ti
GEFORCE RTX 4070 TI VENTUS 3X OC
2655 MHz +1.7%2.6308 mm123 mm51 mm
