Zotac GeForce RTX 4070 Ti Trinity
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 4070 Ti > Zotac GeForce RTX 4070 Ti Trinity

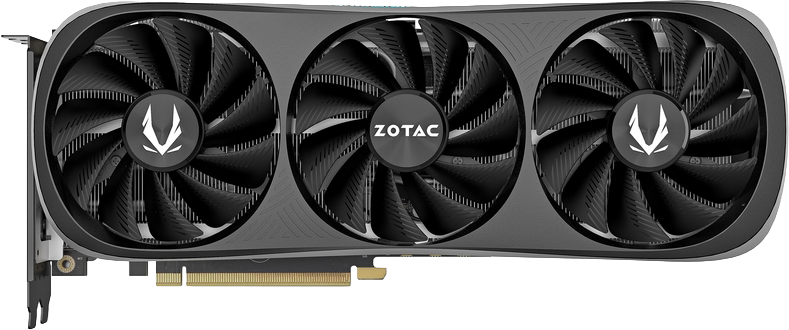

Zotac GeForce RTX 4070 Ti Trinity - Front
Zotac GeForce RTX 4070 Ti Trinity - Front Zotac GeForce RTX 4070 Ti Trinity - Rear Zotac GeForce RTX 4070 Ti Trinity - Side Zotac GeForce RTX 4070 Ti Trinity - Outputs
Zotac GeForce RTX 4070 Ti Trinity
ZT-D40710D-10P
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD104
FoundryTSMC
Process Node5 nm
Transistors35800 million
Die Size294.0 mm²
Density121.8 /mm²
GPU Core Config
Cores7680
TMUs240
ROPs80
Tensor Cores240
RT Cores60
Memory
TechnologyGDDR6X
Size12 GB
Bus192 bit
Bandwidth504.2 GB/s
Speed21.0 Gbps
Clocks
Base clock2310 MHz
Boost Clock2610 MHz
Memory Clock1313 MHz
Power
16-pin1
TDP285 w
Recommended PSU750 w 700 w
Display
DisplayPort3 1.4a
HDMI1 2.1a
Monitors4
Dimensions
Slots3
Length306.8 mm
Height119.4 mm
Width58.5 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus TUF Gaming GeForce RTX 4070 Ti White OC Edition
TUF-RTX4070TI-O12G-WHITE-GAMING
2760 MHz +5.7%3.3305 mm138 mm65 mm
Asus ProArt GeForce RTX 4070 Ti
PROART-RTX4070TI-12G
2640 MHz +1.1%2.5300 mm120 mm50 mm
Asus ProArt GeForce RTX 4070 Ti OC edition
PROART-RTX4070TI-O12G
2760 MHz +5.7%2.5300 mm120 mm50 mm
Asus TUF Gaming GeForce RTX 4070 Ti OC Edition
TUF-RTX4070TI-O12G-GAMING
2760 MHz +5.7%3.3305 mm138 mm65 mm
Asus TUF Gaming GeForce RTX 4070 Ti
TUF-RTX4070TI-12G-GAMING
2640 MHz +1.1%3.3305 mm138 mm65 mm
Asus ROG Strix GeForce RTX 4070 Ti
ROG-STRIX-RTX4070TI-12G-GAMING-MODEL
2640 MHz +1.1%3.2336 mm150 mm63 mm
Asus ROG Strix GeForce RTX 4070 Ti OC Edition
ROG-STRIX-RTX4070TI-O12G-GAMING-MODEL
2790 MHz +6.9%3.2336 mm150 mm63 mm
Gigabyte AORUS GeForce RTX 4070 Ti ELITE
GV-N407TAORUS E-12GD
2655 MHz +1.7%3.6342 mm153 mm70.6 mm
Gigabyte GeForce RTX 4070 Ti AERO OC
GV-N407TAERO OC-12GD
2640 MHz +1.1%2.9336 mm140 mm58 mm
Gigabyte GeForce RTX 4070 Ti EAGLE OC
GV-N407TEAGLE OC-12GD
2625 MHz +0.6%2.9301 mm136 mm58 mm
PNY GeForce RTX 4070 Ti SUPER XLR8 Gaming VERTO EPIC-X RGB Overclocked Triple Fan
VCG4070TS16TFXXPB1-O
2655 MHz +1.7%3.3332.7 mm136.4 mm66.5 mm

PNY GeForce RTX 4070 Ti SUPER XLR8 Gaming VERTO EPIC-X RGB Triple Fan
VCG4070TS16TFXXPB1
2610 MHz3.3332.7 mm136.4 mm66.5 mm
MSI RTX 4070 Ti
GEFORCE RTX 4070 TI VENTUS 3X OC
2655 MHz +1.7%2.6308 mm123 mm51 mm
Zotac GeForce RTX 4070 Ti Trinity
ZT-D40710D-10P
2610 MHz3306.8 mm119.4 mm58.5 mm
