ASRock Radeon RX 6800 XT Phantom Gaming OC
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > AMD RX 6800 XT > ASRock Radeon RX 6800 XT Phantom Gaming OC

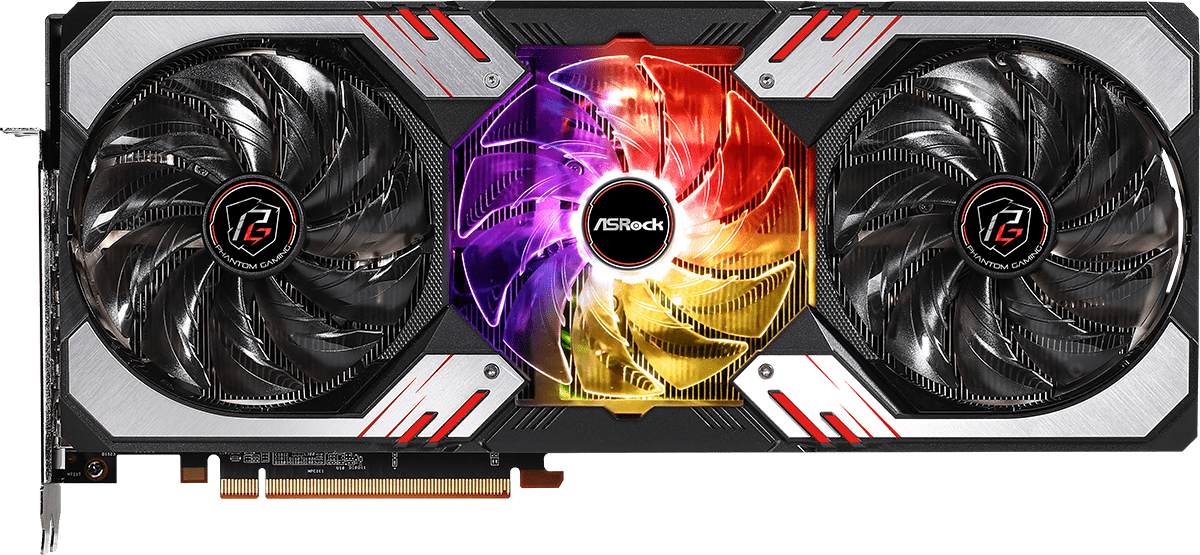

ASRock Radeon RX 6800 XT Phantom Gaming OC - Front

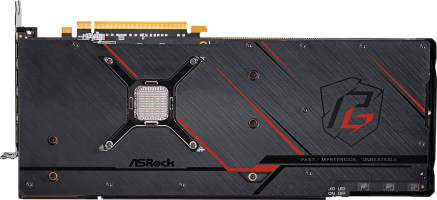

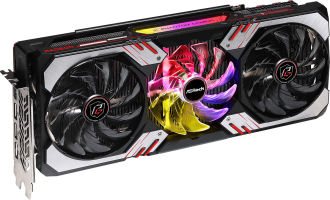

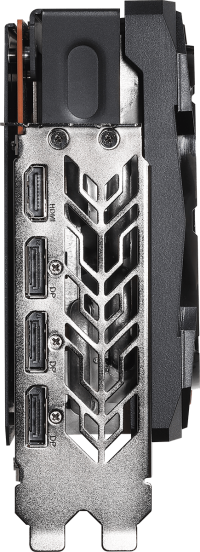

ASRock Radeon RX 6800 XT Phantom Gaming OC - Front ASRock Radeon RX 6800 XT Phantom Gaming OC - Rear ASRock Radeon RX 6800 XT Phantom Gaming OC - Side ASRock Radeon RX 6800 XT Phantom Gaming OC - Outputs
ASRock Radeon RX 6800 XT Phantom Gaming OC
RX6800XT PG 16GO
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores5120
TMUs288
ROPs128
RT Cores72
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth512.0 GB/s
Speed16.0 Gbps
Clocks
Base clock1875 MHz 1825 MHz
Game Clock2065 MHz 2015 MHz
Boost Clock2310 MHz 2250 MHz
Memory Clock2000 MHz
Power
8-pin3
TDP300 w
Recommended PSU800 w 700 w
Display
DisplayPort3 1.4
HDMI1 2.1
USB Type-C1
Dimensions
Slots2.8 3
Length330 mm
Height140 mm
Width56 mm
Weight1784 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
ASRock Radeon RX 6800 XT Taichi X OC
RX6800XT TCX 16GO
2360 MHz +4.9%2.8330 mm140 mm56 mm
MSI Radeon RX 6800 XT GAMING Z TRIO
2310 MHz +2.7%2.8324 mm142 mm55 mm
ASRock Radeon RX 6800 XT Phantom Gaming D OC
RX6800XT PGD 16GO
2310 MHz +2.7%2.8330 mm140 mm56 mm
PowerColor Red Dragon AMD Radeon RX 6800 XT
AXRX 6800 XT 16GBD6-3DHR/OC
2310 MHz +2.7%2.7310 mm135 mm54 mm
ASRock Radeon RX 6800 XT Phantom Gaming OC
RX6800XT PG 16GO
2310 MHz +2.7%2.8330 mm140 mm56 mm
Gigabyte Radeon RX 6800 XT GAMING OC
GV-R68XTGAMING OC-16GD
2285 MHz +1.6%2.9286 mm118 mm58 mm
