Gigabyte Radeon RX 6800 XT GAMING OC
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > AMD RX 6800 XT > Gigabyte Radeon RX 6800 XT GAMING OC

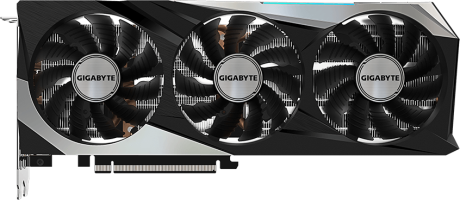

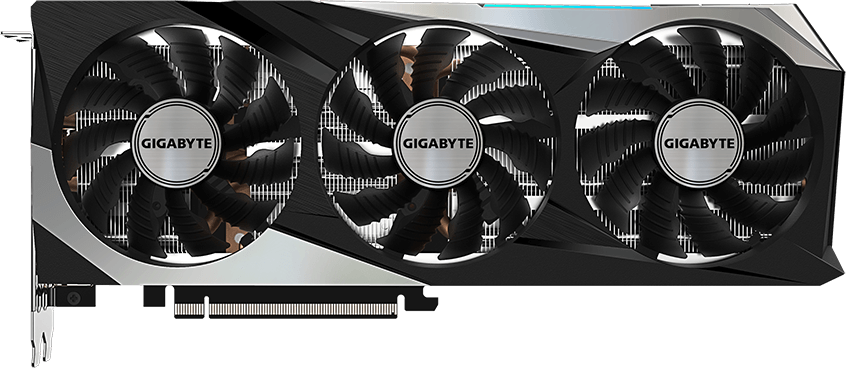

Gigabyte Radeon RX 6800 XT GAMING OC - Front

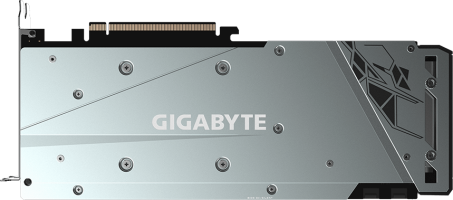

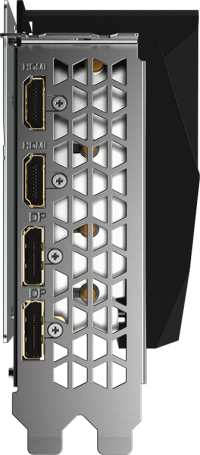

Gigabyte Radeon RX 6800 XT GAMING OC - Front Gigabyte Radeon RX 6800 XT GAMING OC - Rear Gigabyte Radeon RX 6800 XT GAMING OC - Side Gigabyte Radeon RX 6800 XT GAMING OC - Outputs
Gigabyte Radeon RX 6800 XT GAMING OC
GV-R68XTGAMING OC-16GD
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores5120
TMUs288
ROPs128
RT Cores72
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth512.0 GB/s
Speed16.0 Gbps
Clocks
Base clock1825 MHz
Game Clock2045 MHz 2015 MHz
Boost Clock2285 MHz 2250 MHz
Memory Clock2000 MHz
Power
8-pin2
TDP300 w
Recommended PSU750 w 700 w
Display
DisplayPort2 1.4a
HDMI2 2.1
USB Type-C1
Dimensions
Slots2.9 3
Length286 mm
Height118 mm
Width58 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
ASRock Radeon RX 6800 XT Taichi X OC
RX6800XT TCX 16GO
2360 MHz +4.9%2.8330 mm140 mm56 mm
MSI Radeon RX 6800 XT GAMING Z TRIO
2310 MHz +2.7%2.8324 mm142 mm55 mm
ASRock Radeon RX 6800 XT Phantom Gaming D OC
RX6800XT PGD 16GO
2310 MHz +2.7%2.8330 mm140 mm56 mm
PowerColor Red Dragon AMD Radeon RX 6800 XT
AXRX 6800 XT 16GBD6-3DHR/OC
2310 MHz +2.7%2.7310 mm135 mm54 mm
ASRock Radeon RX 6800 XT Phantom Gaming OC
RX6800XT PG 16GO
2310 MHz +2.7%2.8330 mm140 mm56 mm
Gigabyte Radeon RX 6800 XT GAMING OC
GV-R68XTGAMING OC-16GD
2285 MHz +1.6%2.9286 mm118 mm58 mm
