MSI GeForce GTX 680 Twin Frozr

Specs, info and data

The GPU Database

Featuring 310+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 680 > MSI GeForce GTX 680 Twin Frozr

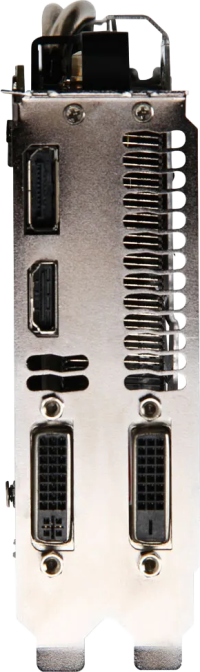

MSI GeForce GTX 680 Twin Frozr - Outputs

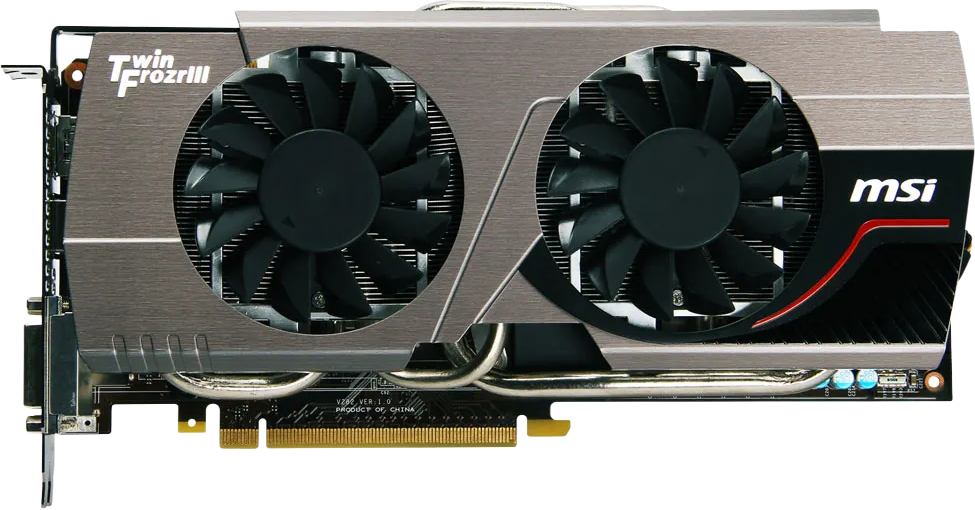

MSI GeForce GTX 680 Twin Frozr
N680GTX TWIN FROZR 2GD5/OC
GPUs.net

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps

Clocks
Base clock1006 MHz
Boost Clock1124 MHz 1058 MHz
Memory Clock1502 MHz
Power
6-pin2
Display
DisplayPort1 1.2
HDMI1 1.4
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length270 mm 256 mm
Height129 mm 111 mm
Width38.8 mm 38 mm
Weight792 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce GTX 680 LIGHTNING N680GTX LIGHTNING	1176 MHz +11.2%	2.5	280 mm	129 mm	49.2 mm
Zotac GeForce GTX 680 ZT-60101-10P	1058 MHz	2	254 mm	111.2 mm
MSI GeForce GTX 680 Twin Frozr N680GTX TWIN FROZR 2GD5/OC	1124 MHz +6.2%	2	270 mm	129 mm	38.8 mm
