Zotac GeForce GTX 680
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 680 > Zotac GeForce GTX 680

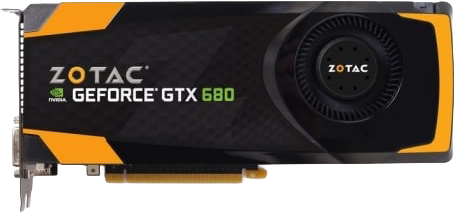

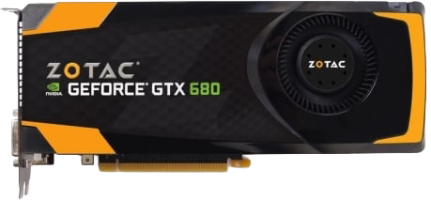

Zotac GeForce GTX 680 - Front

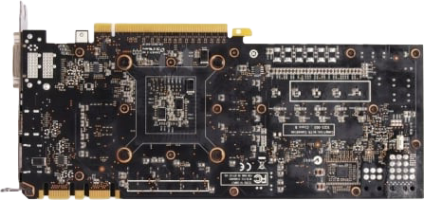

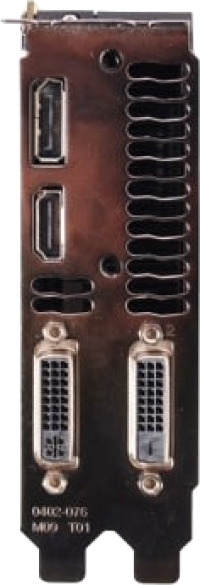

Zotac GeForce GTX 680 - Front Zotac GeForce GTX 680 - Rear Zotac GeForce GTX 680 - Side Zotac GeForce GTX 680 - Outputs
Zotac GeForce GTX 680
ZT-60101-10P
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps
Clocks
Base clock1006 MHz
Boost Clock1058 MHz
Memory Clock1502 MHz
Power
6-pin2
TDP195 w
Recommended PSU550 w
Display
DisplayPort1
HDMI1
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length254 mm 256 mm
Height111.2 mm 111 mm
Width38 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 680 LIGHTNING
N680GTX LIGHTNING
1176 MHz +11.2%2.5280 mm129 mm49.2 mm
Zotac GeForce GTX 680
ZT-60101-10P
1058 MHz2254 mm111.2 mm
MSI GeForce GTX 680 Twin Frozr
N680GTX TWIN FROZR 2GD5/OC
1124 MHz +6.2%2270 mm129 mm38.8 mm
