Asus ROG Strix GeForce RTX 3060 Ti
Specs, info and data
The GPU Database
Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 3060 Ti > Asus ROG Strix GeForce RTX 3060 Ti

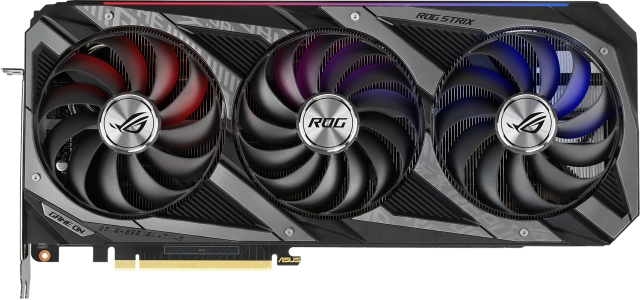

Asus ROG Strix GeForce RTX 3060 Ti
Asus ROG Strix GeForce RTX 3060 Ti
ROG-STRIX-RTX3060TI-8G-GAMING
ROG Strix GeForce RTX™ 3060 Ti 8GB GDDR6 buffed-up design with chart-topping thermal performance NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities. Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence. 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392 mm²
Density44.4 /mm²
GPU Core Config
Cores4864
TMUs152
ROPs80
SMs38
Tensor Cores152
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448 GB/s
Speed14 Gbps
Clocks
Base clock1410 MHz
Boost Clock1665 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP200 w
Recommended PSU750 w 600 w

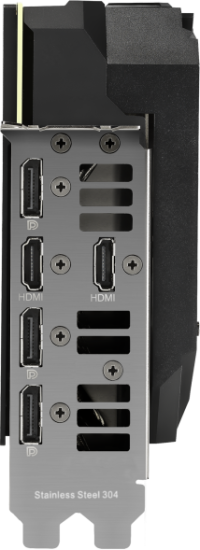

Display
DisplayPort3 1.4a
HDMI2 2.1
HDCP2.3
Resolution7680 x 4320
Monitors4
Dimensions
Slots2.9
Length318.5 mm
Height140.1 mm
Width57.8 mm

Models
GPUBoost ClockSlotsLengthHeightWidth
1665 MHz2247 mm120 mm40 mm
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
1665 MHz2.9318.5 mm140.1 mm57.8 mm
1665 MHz2.9318.5 mm140.1 mm57.8 mm
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
1695 MHz +1.8%2222.1 mm115.6 mm38.2 mm
1800 MHz +8.1%2.7294 mm112 mm mm
