Gainward GeForce RTX 3060 Ti Phoenix GS

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 3060 Ti > Gainward GeForce RTX 3060 Ti Phoenix GS

Gainward GeForce RTX 3060 Ti Phoenix GS
NE6306TT19P2-1041X
NVIDIA Ampere Architecture
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express® Gen 4
NVIDIA DLSS
NVIDIA® GeForce Experience™
NVIDIA G-SYNC®
Game Ready Drivers
Microsoft DirectX® 12 Ultimate
Vulkan RT API, OpenGL 4.6
NVIDIA GPU Boost™
VR Ready

Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392 mm²
Density44.4 /mm²
GPU Core Config
Cores4864
TMUs152
ROPs80
SMs38
Tensor Cores152
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448 GB/s
Speed14 Gbps

Information
Platform	Consumer
Architecture	Ampere
Generation	GeForce RTX 30
Previous Gen	GeForce RTX 20
Next Gen	GeForce RTX 40
Interface	PCIe 4.0 x16
Max temperature	93 C

Core
Name	GA104
Foundry	Samsung
Process Node	8 nm
Transistors	17400 million
Die Size	392 mm²
Density	44.4 /mm²

GPU Core Config
Cores	4864
TMUs	152
ROPs	80
SMs	38
Tensor Cores	152

Memory
Technology	GDDR6
Size	8 GB
Bus	256 bit
Bandwidth	448 GB/s
Speed	14 Gbps

Clocks
Base clock1410 MHz
Boost Clock1800 MHz 1665 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP200 w
Recommended PSU600 w

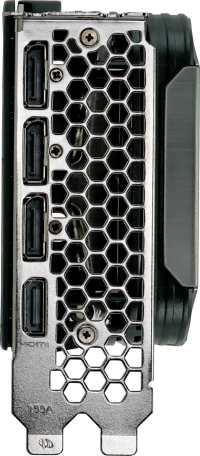

Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Resolution7680 x 4320
Monitors4
Dimensions
Slots2.7 2.9
Length294 mm 318.5 mm
Height112 mm 140.1 mm
Width57.8 mm

Clocks
Base clock	1410 MHz
Boost Clock	1800 MHz 1665 MHz
Memory Clock	1750 MHz

Power
8-pin	2
TDP	200 w
Recommended PSU	600 w

Display
DisplayPort	3 1.4a
HDMI	1 2.1
HDCP	2.3
Resolution	7680 x 4320
Monitors	4

Dimensions
Slots	2.7 2.9
Length	294 mm 318.5 mm
Height	112 mm 140.1 mm
Width	57.8 mm

Bios files

94.04.27.80.03

N/A

Download

Size: 976 KB

Build: 2020-08-31

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Palit GeForce RTX 3060 Ti Dual NE6306T019P2-190AD	1665 MHz	2	247 mm	120 mm	40 mm
Asus ROG Strix GeForce RTX 3060 Ti V2 OC Edition ROG-STRIX-RTX3060TI-O8G-V2-GAMING	1860 MHz +11.7%	2.9	318.5 mm	140.1 mm	57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti V2 ROG-STRIX-RTX3060TI-8G-V2-GAMING	1665 MHz	2.9	318.5 mm	140.1 mm	57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti ROG-STRIX-RTX3060TI-8G-GAMING	1665 MHz	2.9	318.5 mm	140.1 mm	57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti OC Edition ROG-STRIX-RTX3060TI-O8G-GAMING	1860 MHz +11.7%	2.9	318.5 mm	140.1 mm	57.8 mm
Zotac GeForce RTX 3060 Ti Twin Edge OC ZT-A30610H-10M	1695 MHz +1.8%	2	222.1 mm	115.6 mm	38.2 mm
Gainward GeForce RTX 3060 Ti Phoenix GS NE6306TT19P2-1041X	1800 MHz +8.1%	2.7	294 mm	112 mm	mm
