EVGA GeForce RTX 3060 Ti XC GAMING
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 3060 Ti > EVGA GeForce RTX 3060 Ti XC GAMING

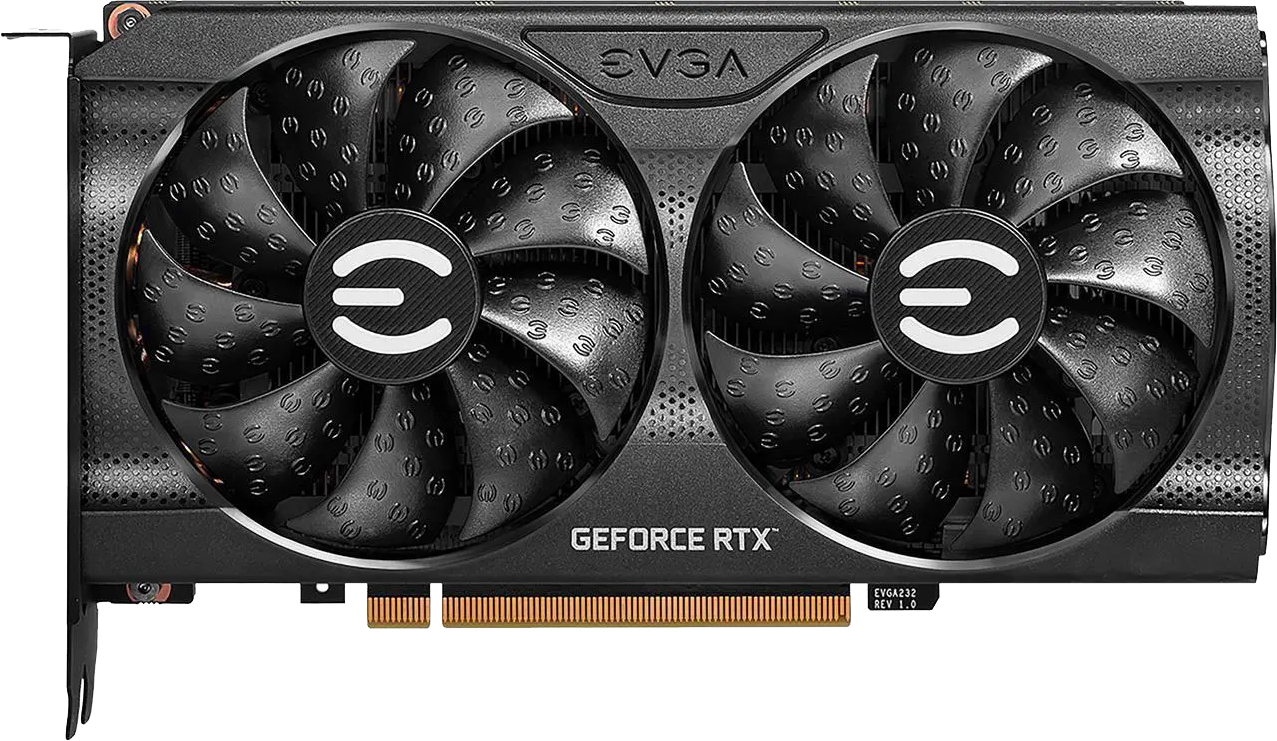

EVGA GeForce RTX 3060 Ti XC GAMING - Front

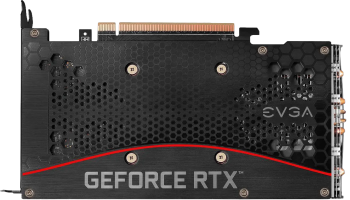

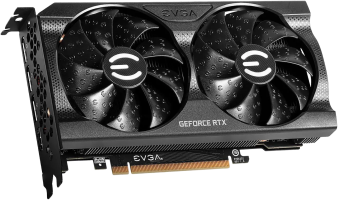

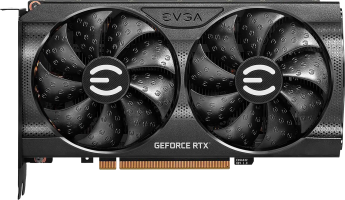

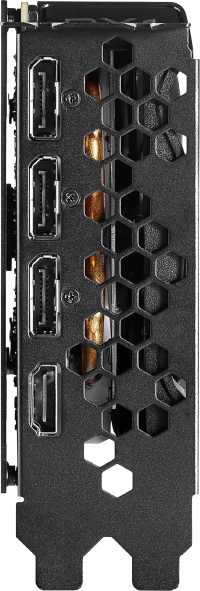

EVGA GeForce RTX 3060 Ti XC GAMING - Front EVGA GeForce RTX 3060 Ti XC GAMING - Rear EVGA GeForce RTX 3060 Ti XC GAMING - Side EVGA GeForce RTX 3060 Ti XC GAMING - Outputs
EVGA GeForce RTX 3060 Ti XC GAMING
08G-P5-3663-KL
Available at Amazon from $1569.90. Buy now!
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392.0 mm²
Density44.4 /mm²
GPU Core Config
Cores4864
TMUs152
ROPs80
SMs38
Tensor Cores152
RT Cores38
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock1410 MHz
Boost Clock1710 MHz 1665 MHz
Memory Clock1750 MHz
Power
8-pin1
TDP200 w
Recommended PSU600 w
Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Resolution7680 x 4320
Monitors4
Dimensions
Slots2
Length201.8 mm 242 mm
Height110 mm 112 mm
Width40 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Palit GeForce RTX 3060 Ti Dual
NE6306T019P2-190AD
1665 MHz2247 mm120 mm40 mm
Asus ROG Strix GeForce RTX 3060 Ti V2 OC Edition
ROG-STRIX-RTX3060TI-O8G-V2-GAMING
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti V2
ROG-STRIX-RTX3060TI-8G-V2-GAMING
1665 MHz2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti
ROG-STRIX-RTX3060TI-8G-GAMING
1665 MHz2.9318.5 mm140.1 mm57.8 mm
Asus ROG Strix GeForce RTX 3060 Ti OC Edition
ROG-STRIX-RTX3060TI-O8G-GAMING
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
Zotac GeForce RTX 3060 Ti Twin Edge OC
ZT-A30610H-10M
1695 MHz +1.8%2222.1 mm115.6 mm38.2 mm
Gainward GeForce RTX 3060 Ti Phoenix GS
NE6306TT19P2-1041X
1800 MHz +8.1%2.7294 mm112 mm mm
NVIDIA RTX 3060 Ti Founders Edition
1665 MHz2242 mm112 mm40 mm
Asus Dual GeForce RTX 3060 Ti OC Edition
DUAL-RTX3060TI-O8G
1740 MHz +4.5%2.7269 mm136 mm52 mm
EVGA GeForce RTX 3060 Ti XC GAMING
08G-P5-3663-KL
1710 MHz +2.7%2201.8 mm110 mm40 mm
Gigabyte AORUS GeForce RTX 3060 Ti ELITE
GV-N306TAORUS E-8GD
1785 MHz +7.2%2.8296 mm117 mm56 mm
Gigabyte GeForce RTX 3060 Ti GAMING OC
GV-N306TGAMING OC-8GD
1740 MHz +4.5%2.1282 mm117 mm41 mm
