Asus Dual GeForce RTX 3070 OC Edition
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 3070 > Asus Dual GeForce RTX 3070 OC Edition

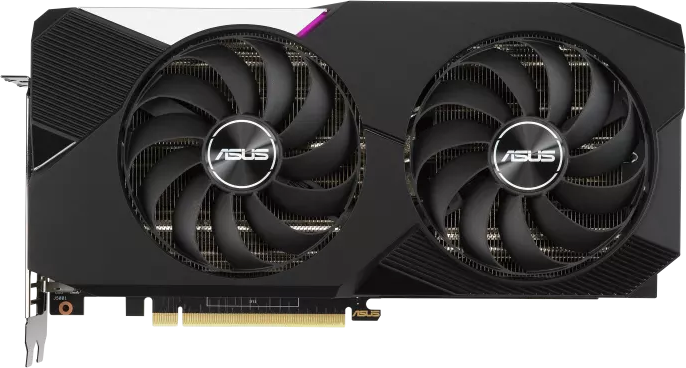

Asus Dual GeForce RTX 3070 OC Edition - Front

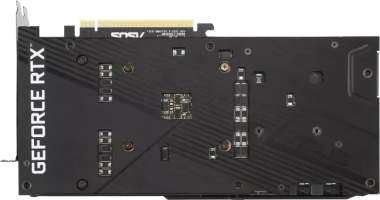

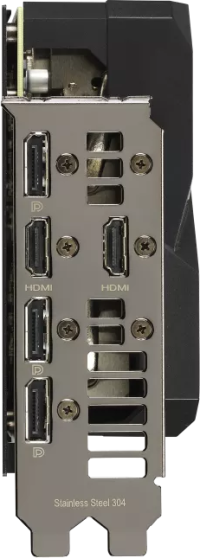

Asus Dual GeForce RTX 3070 OC Edition - Front Asus Dual GeForce RTX 3070 OC Edition - Rear Asus Dual GeForce RTX 3070 OC Edition - Side Asus Dual GeForce RTX 3070 OC Edition - Outputs
Asus Dual GeForce RTX 3070 OC Edition
DUAL-RTX3070-O8G
The ASUS GeForce RTX™️ 3070 OC Edition 8GB GDDR6 with two powerful Axial-tech fans for AAA gaming performance and ray tracing. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities. Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. Auto-Extreme Technology uses automation to enhance reliability. A protective backplate secures components during transportation and installation. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392.0 mm²
Density44.4 /mm²
GPU Core Config
Cores5888
TMUs184
ROPs96
SMs46
Tensor Cores184
RT Cores46
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock MHz 1500 MHz
Boost Clock1770 MHz 1725 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP240 w 220 w
Recommended PSU650 w
Display
DisplayPort3 1.4a
HDMI2 2.1
Resolution7680x4320
Monitors4
Dimensions
Slots2.5 2
Length242 mm
Height112 mm
Width40 mm

Bios files
94.04.3A.40.21
Quiet
Size: 976 KB
Build: 2020-10-30
94.04.3A.40.20
Performance
Size: 976 KB
Build: 2020-10-30

Models
GPUBoost ClockSlotsLengthHeightWidth
1770 MHz +2.6%2.5
1755 MHz +1.7%2
1845 MHz +7.0%3290 mm131 mm60 mm
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz2.8294 mm112 mm55.9 mm
1725 MHz2242 mm112 mm40 mm
1770 MHz +2.6%2.1282 mm115 mm41 mm
1815 MHz +5.2%2.6286 mm115 mm51 mm
1815 MHz +5.2%2.8300 mm136.8 mm
1830 MHz +6.1%3.1335 mm140 mm61 mm
1755 MHz +1.7%2.6232 mm124 mm52 mm
1755 MHz +1.7%2.6305 mm121 mm52 mm
1755 MHz +1.7%2.1231.9 mm141.3 mm41.5 mm
