Zotac GeForce RTX 3070 Twin Edge OC
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 3070 > Zotac GeForce RTX 3070 Twin Edge OC

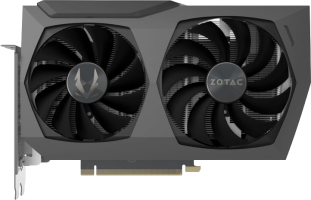

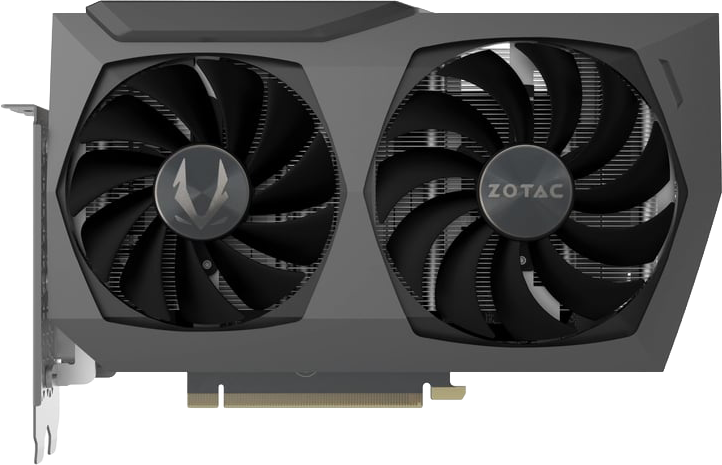

Zotac GeForce RTX 3070 Twin Edge OC - Front

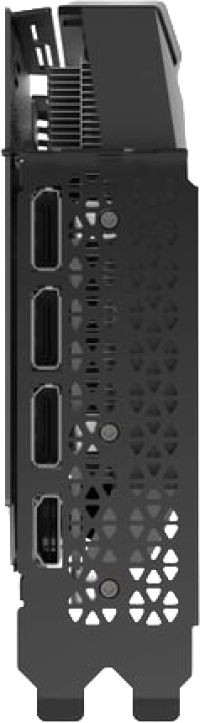

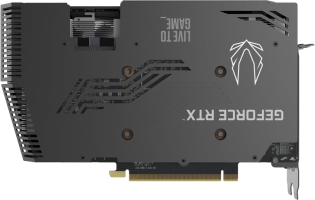

Zotac GeForce RTX 3070 Twin Edge OC - Front Zotac GeForce RTX 3070 Twin Edge OC - Rear Zotac GeForce RTX 3070 Twin Edge OC - Side Zotac GeForce RTX 3070 Twin Edge OC - Outputs
Zotac GeForce RTX 3070 Twin Edge OC
ZT-A30700H-10P
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392.0 mm²
Density44.4 /mm²
GPU Core Config
Cores5888
TMUs184
ROPs96
SMs46
Tensor Cores184
RT Cores46
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock1500 MHz
Boost Clock1755 MHz 1725 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP220 w
Recommended PSU650 w
Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Resolution7680x4320
Monitors4
Dimensions
Slots2.1 2
Length231.9 mm 242 mm
Height141.3 mm 112 mm
Width41.5 mm 40 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus Dual GeForce RTX 3070 OC Edition
DUAL-RTX3070-O8G
1770 MHz +2.6%2.5
Asus Turbo GeForce RTX 3070 V2
TURBO-RTX3070-8G-V2
1755 MHz +1.7%2
Gigabyte AORUS GeForce RTX 3070 MASTER
GV-N3070AORUS M-8GD
1845 MHz +7.0%3290 mm131 mm60 mm

Asus ROG Strix GeForce RTX 3070 V2 White OC Edition
ROG-STRIX-RTX3070-O8G-WHITE-V2
1725 MHz

Asus ROG Strix GeForce RTX 3070 V2 White Edition
ROG-STRIX-RTX3070-8G-WHITE-V2
1725 MHz

Asus ROG Strix GeForce RTX 3070 V2 OC Edition
ROG-STRIX-RTX3070-O8G-V2-GAMING
1725 MHz

Asus ROG Strix GeForce RTX 3070 V2
ROG-STRIX-RTX3070-8G-V2-GAMING
1725 MHz

Asus ROG Strix GeForce RTX 3070 White Edition
ROG-STRIX-RTX3070-8G-WHITE
1725 MHz

Asus ROG Strix GeForce RTX 3070 White OC Edition
ROG-STRIX-RTX3070-O8G-WHITE
1725 MHz

Asus ROG Strix GeForce RTX 3070
ROG-STRIX-RTX3070-8G-GAMING
1725 MHz

Asus ROG Strix GeForce RTX 3070 OC Edition
ROG-STRIX-RTX3070-O8G-GAMING
1725 MHz
PNY GeForce RTX 3070 XLR8 Gaming REVEL EPIC-X RGB Triple Fan Edition
VCG30708TFXPPB
1725 MHz2.8294 mm112 mm55.9 mm
NVIDIA RTX 3070 Founders Edition
1725 MHz2242 mm112 mm40 mm
Gigabyte GeForce RTX 3070 EAGLE OC
GV-N3070EAGLE OC-8GD
1770 MHz +2.6%2.1282 mm115 mm41 mm
Gigabyte GeForce RTX 3070 GAMING OC
GV-N3070GAMING OC-8GD
1815 MHz +5.2%2.6286 mm115 mm51 mm
EVGA GeForce RTX 3070 FTW3 Ultra
08G-P5-3767-KR
1815 MHz +5.2%2.8300 mm136.8 mm
MSI GeForce RTX 3070 SUPRIM
1830 MHz +6.1%3.1335 mm140 mm61 mm
MSI GeForce RTX 3070 VENTUS 2X OC
1755 MHz +1.7%2.6232 mm124 mm52 mm
MSI GeForce RTX 3070 VENTUS 3X OC
1755 MHz +1.7%2.6305 mm121 mm52 mm
Zotac GeForce RTX 3070 Twin Edge OC
ZT-A30700H-10P
1755 MHz +1.7%2.1231.9 mm141.3 mm41.5 mm
