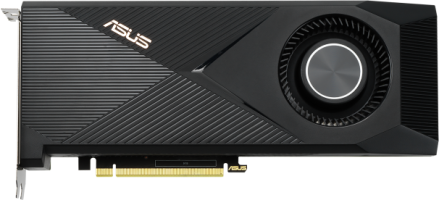

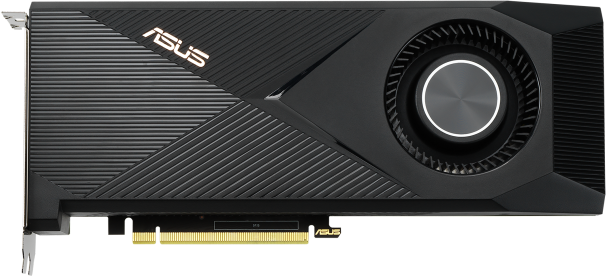

Asus Turbo GeForce RTX 3070 V2 - Front

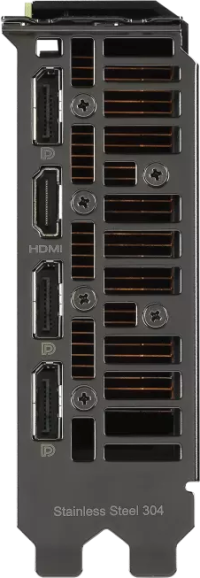

Asus Turbo GeForce RTX 3070 V2 - Front Asus Turbo GeForce RTX 3070 V2 - Side Asus Turbo GeForce RTX 3070 V2 - Side Asus Turbo GeForce RTX 3070 V2 - Outputs
Asus Turbo GeForce RTX 3070 V2
TURBO-RTX3070-8G-V2
ASUS Turbo GeForce RTX™ 3070 V2 8GB GDDR6 with LHR features a refreshed design for environments with restricted airflow. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities. This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). A redesigned shroud incorporates angles on all edges for optimized airflow. Dual ball fan bearings can last up to twice as long as sleeve bearing designs. Auto-Extreme Technology uses automation to enhance reliability.

Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392.0 mm²
Density44.4 /mm²
GPU Core Config
Cores5888
TMUs184
ROPs96
SMs46
Tensor Cores184
RT Cores46
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock1500 MHz
Boost Clock1755 MHz 1725 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP220 w
Recommended PSU650 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Resolution7680x4320
Monitors4
Dimensions
Slots2
Length242 mm
Height112 mm
Width40 mm

Models
GPUBoost ClockSlotsLengthHeightWidth
1770 MHz +2.6%2.5
1755 MHz +1.7%2
1845 MHz +7.0%3290 mm131 mm60 mm
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz
1725 MHz2.8294 mm112 mm55.9 mm
1725 MHz2242 mm112 mm40 mm
1770 MHz +2.6%2.1282 mm115 mm41 mm
1815 MHz +5.2%2.6286 mm115 mm51 mm
1815 MHz +5.2%2.8300 mm136.8 mm
1830 MHz +6.1%3.1335 mm140 mm61 mm
1755 MHz +1.7%2.6232 mm124 mm52 mm
1755 MHz +1.7%2.6305 mm121 mm52 mm
1755 MHz +1.7%2.1231.9 mm141.3 mm41.5 mm
