Gigabyte GeForce RTX 3070 EAGLE OC
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 3070 > Gigabyte GeForce RTX 3070 EAGLE OC

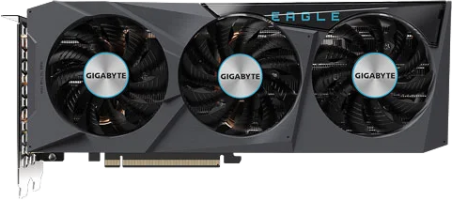

Gigabyte GeForce RTX 3070 EAGLE OC - Front

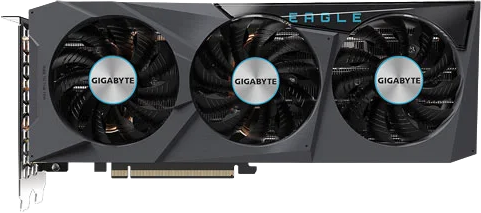

Gigabyte GeForce RTX 3070 EAGLE OC - Front
Gigabyte GeForce RTX 3070 EAGLE OC
GV-N3070EAGLE OC-8GD
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA104
FoundrySamsung
Process Node8 nm
Transistors17400 million
Die Size392.0 mm²
Density44.4 /mm²
GPU Core Config
Cores5888
TMUs184
ROPs96
SMs46
Tensor Cores184
RT Cores46
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock1500 MHz
Boost Clock1770 MHz 1725 MHz
Memory Clock1750 MHz
Power
6-pin1
8-pin1
TDP220 w
Recommended PSU650 w
Display
DisplayPort2 1.4a
HDMI2 2.1
Resolution7680x4320
Monitors4
Dimensions
Slots2.1 2
Length282 mm 242 mm
Height115 mm 112 mm
Width41 mm 40 mm
