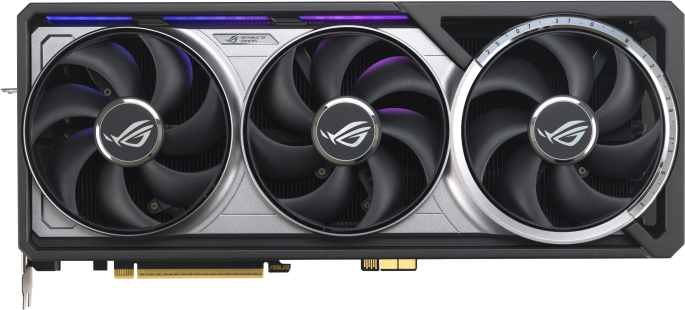

Asus ROG Astral GeForce RTX 5090 BTF Edition
ROG-ASTRAL-RTX5090-32G-BTF-GAMING

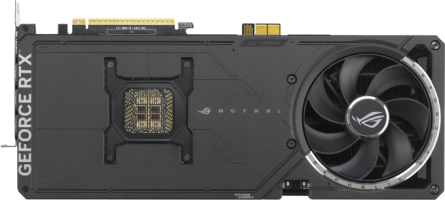

The ROG Astral GeForce RTX 5090 BTF Edition is engineered for unparalleled performance and flexibility. Featuring the latest BTF technology, it incorporates an innovative detachable graphics card high-power (GC-HPWR) adapter withstand up to 1000 watts, whose detachable design ensures compatibility with both standard and BTF motherboards.

To keep this powerhouse cool, the ROG Astral RTX 5090 BTF boasts a quad-fan design, complemented by a patented vapor chamber, increased heatsink fin density, and a phase-change GPU thermal pad. These advanced cooling solutions, combined with towering default clock speeds and boosted power delivery, ensure it's ready to conquer even the most demanding gaming scenarios.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature90 C
Core
NameGB202
FoundryTSMC
Process Node5 nm
Transistors92200 million
Die Size750 mm²
Density122.9 /mm²
GPU Core Config
Cores21760
TMUs680
ROPs176
SMs170
Tensor Cores680
RT Cores170
Memory
TechnologyGDDR7
Size32 GB
Bus512 bit
Bandwidth1792 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	90 C

Core
Name	GB202
Foundry	TSMC
Process Node	5 nm
Transistors	92200 million
Die Size	750 mm²
Density	122.9 /mm²

GPU Core Config
Cores	21760
TMUs	680
ROPs	176
SMs	170
Tensor Cores	680
RT Cores	170

Memory
Technology	GDDR7
Size	32 GB
Bus	512 bit
Bandwidth	1792 GB/s
Speed	28 Gbps

Clocks
Base clock2017 MHz
Boost Clock2437 MHz 2407 MHz
Memory Clock1750 MHz
Power
16-pin1
GC-HPWR1
TDP575 w
Recommended PSU1000 w

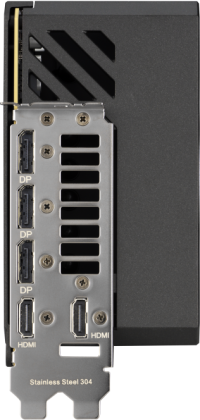

Display
DisplayPort3 2.1b
HDMI2 2.1b
HDCP2.3
Monitors4
Dimensions
Slots3.8 2
Length357.6 mm 304 mm
Height149.3 mm 137 mm
Width76 mm 40 mm

Clocks
Base clock	2017 MHz
Boost Clock	2437 MHz 2407 MHz
Memory Clock	1750 MHz

Power
16-pin	1
GC-HPWR	1
TDP	575 w
Recommended PSU	1000 w

Display
DisplayPort	3 2.1b
HDMI	2 2.1b
HDCP	2.3
Monitors	4

Dimensions
Slots	3.8 2
Length	357.6 mm 304 mm
Height	149.3 mm 137 mm
Width	76 mm 40 mm
